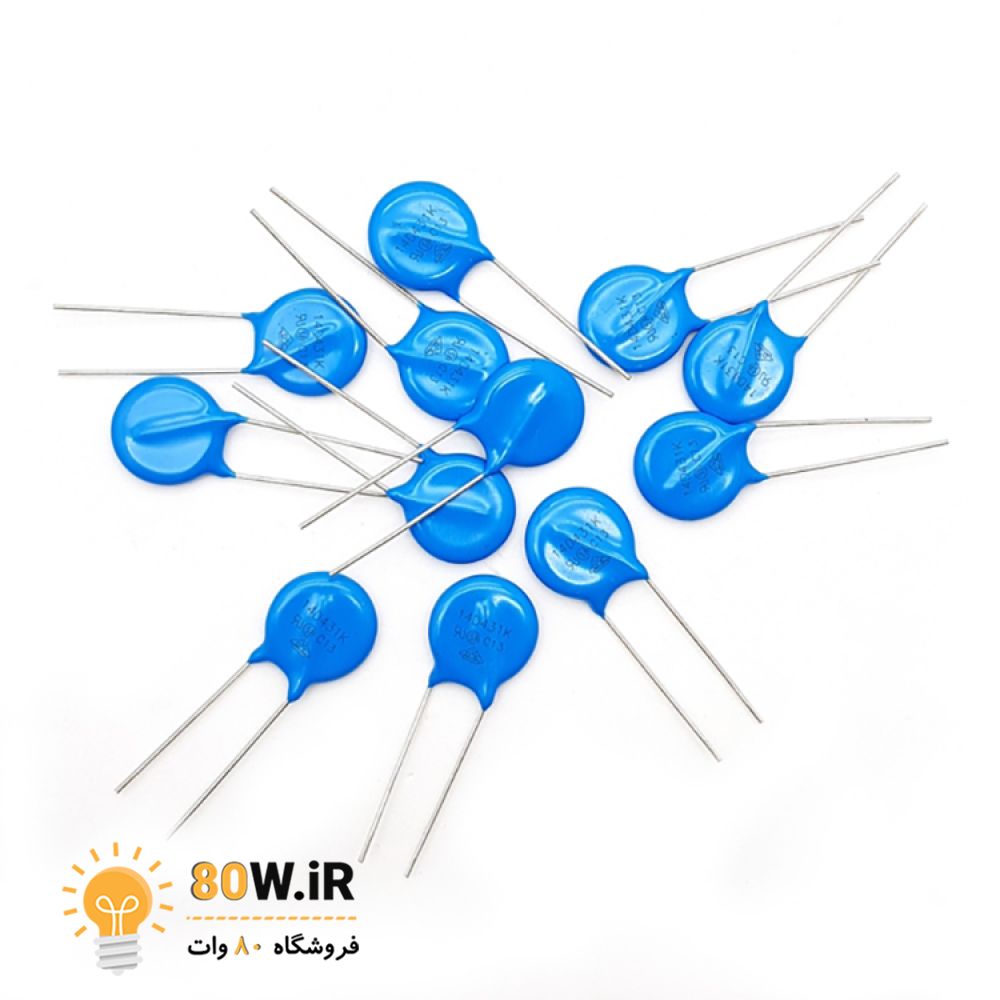

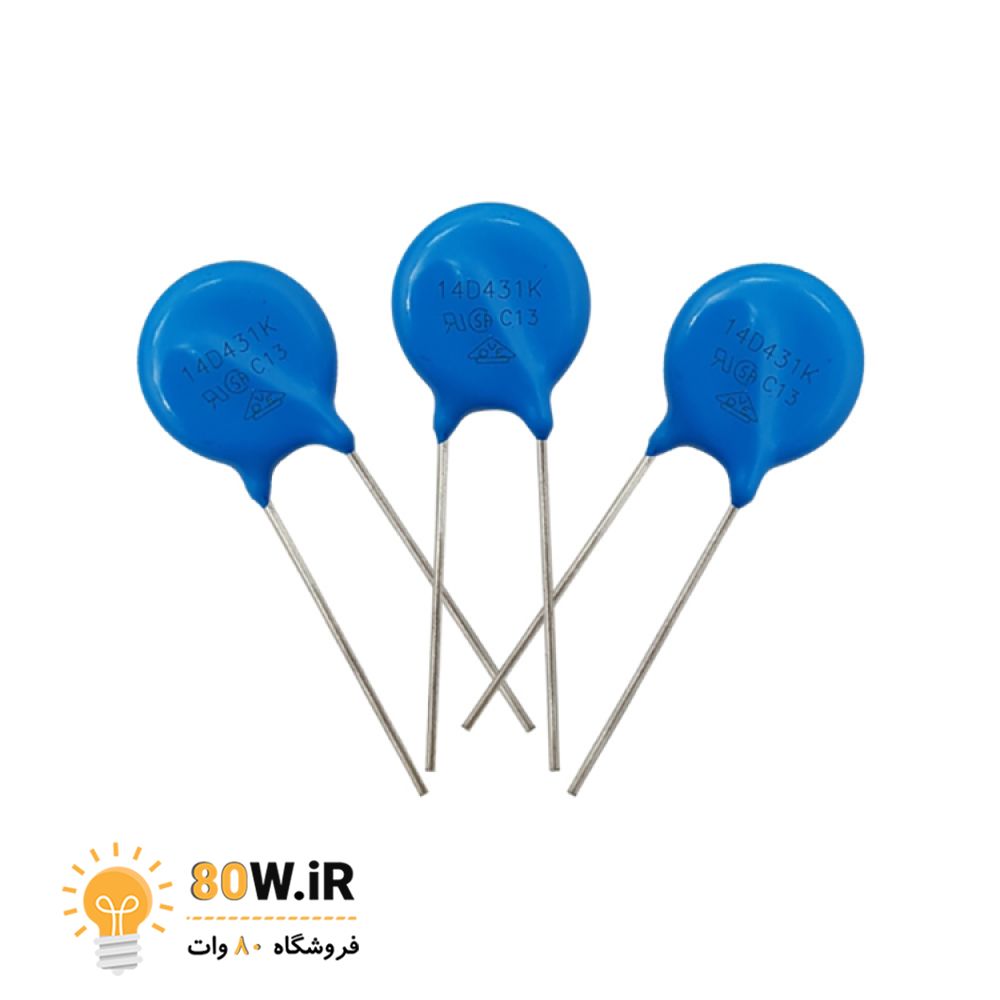

وریستور 14D431

وریستور 14D431K با تحمل ولتاژ پیوسته 275VAC یا 350VDC و قطر 14mm می باشد.

Specification

Product Category: Varistors
Series: MOV-14DxxxK
Mounting Style: PCB Mount
Termination Style: Radial
Voltage Rating DC: 430 VDC
Clamping Voltage: 710 V
Diameter: 14 mm
Peak Surge Current: 4.5 kA
Surge Energy Rating: 115 J
Capacitance: 460 pF
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Current Rating: 50 A
Tolerance: 10 %
Lead Spacing: 7.5 mm
