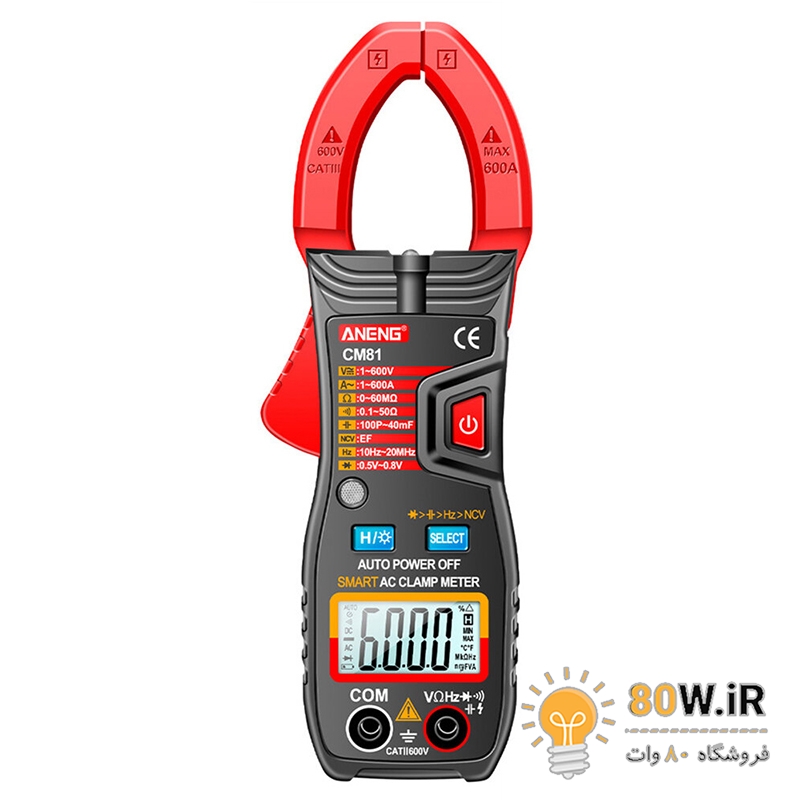

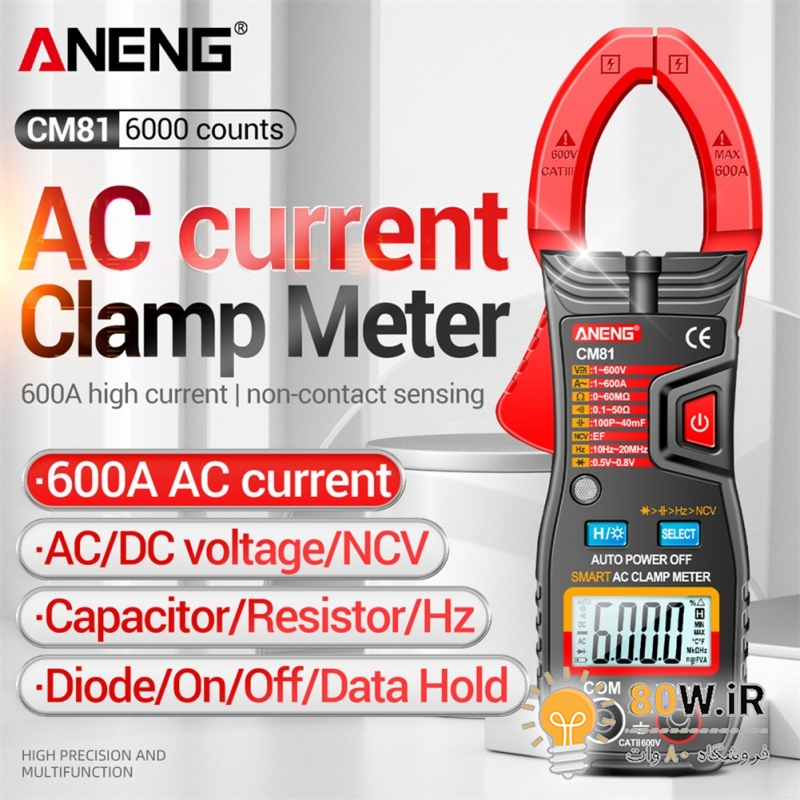

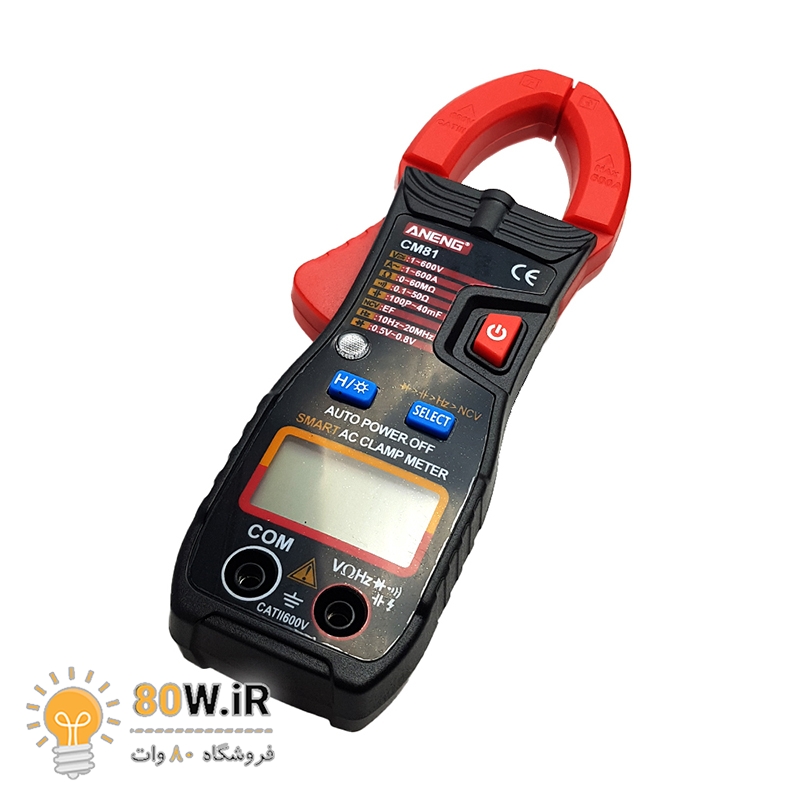

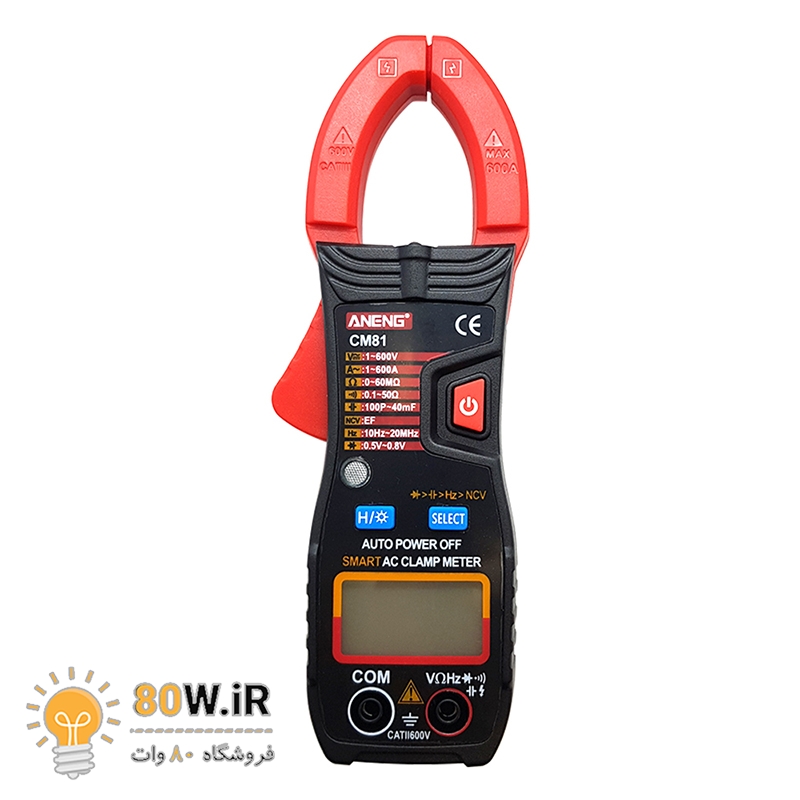

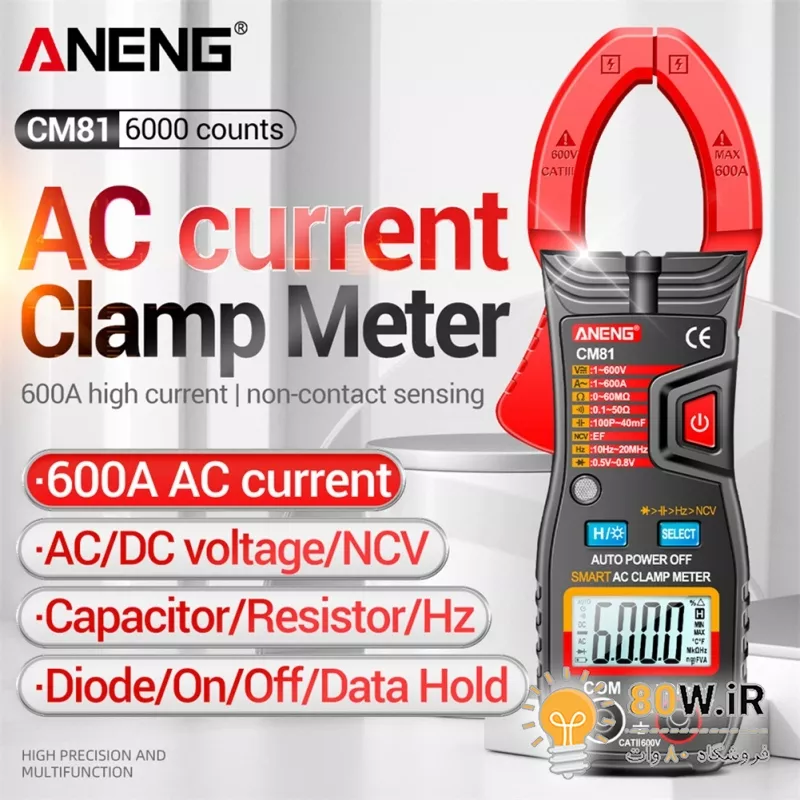

مولتی متر کلمپی دیجیتالی اتورنج هوشمند ANENG مدل CM81

مشخصات مولتی متر کلمپی ANENG مدل CM81:

• منبع تغذیه: 2 عدد باتری نیم قلمی
• دارای دو عدد پروب 1000 ولت
• حداکثر صفحه نمایش: 6000
• صفحه نمایش: صفحه نمایش با نور پس زمینه

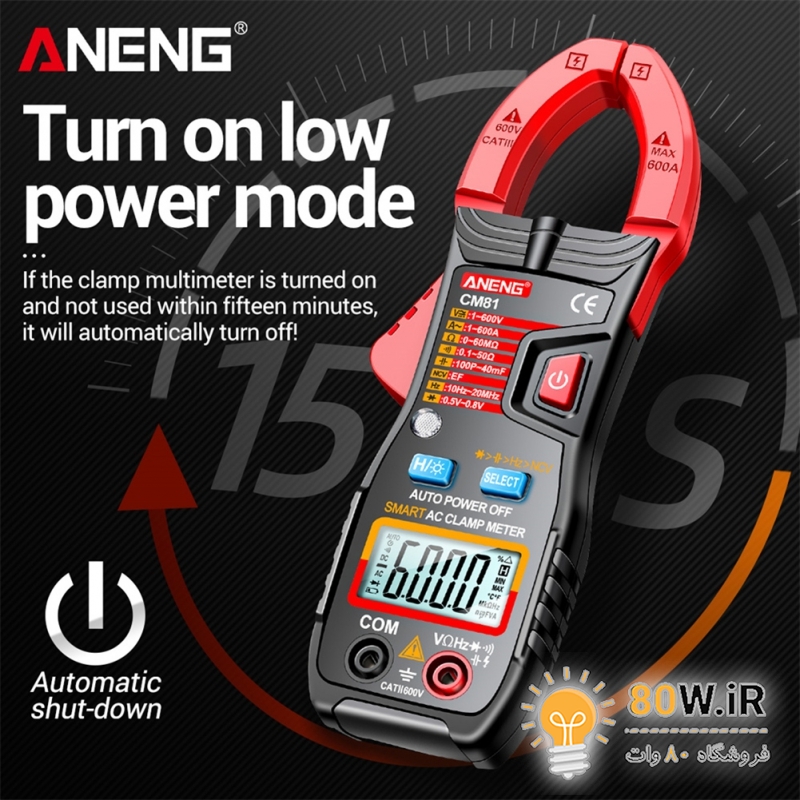

• خاموش شدن خودکار: پس از 15 دقیقه عدم فعالیت
• محدوده ولتاژ AC از : 1-600 ولت
• محدوده ولتاژ DC از : 1-600 ولت
• محدوده سنجش جریان AC از 1-600 آمپر
• محدوده مقاومت: 0-60MΩ
• محدوده ظرفیت خازن: 100P-40mF
• محدوده فرکانس: 10Hz-20MHz
• مجهز به فازمتر القاییNCV: بله
• مجهز به حفظ داده ها (هلد): بله
• دارای چراغ قوه LED در سر بخش کلمپی
• مجهز به بازر و تست دیود 0.1 تا 50 اهم
• ساخت : چین

Features:

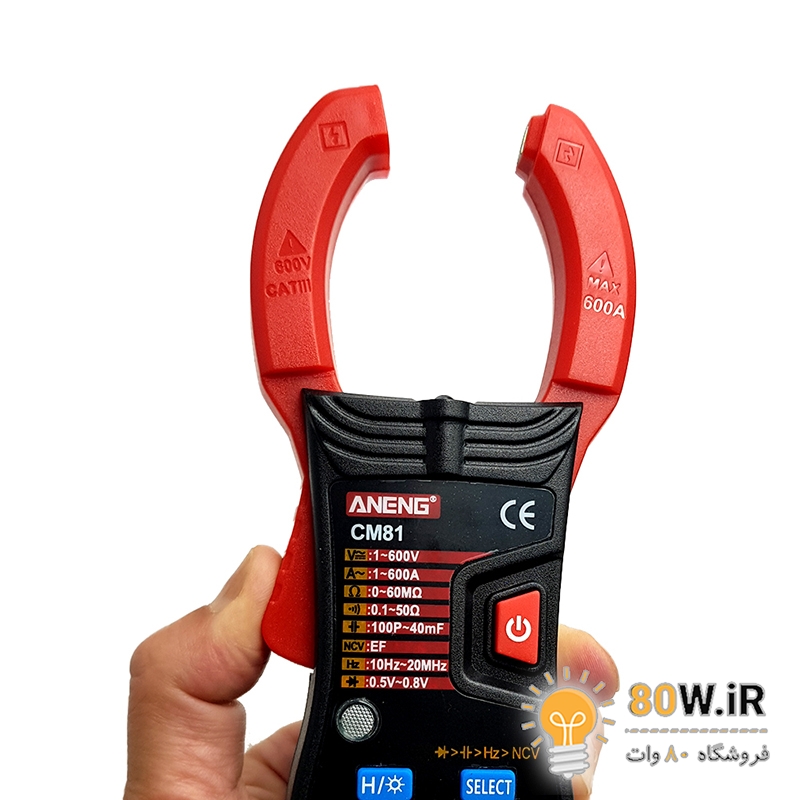

1. The high-precision clamp head accurately measures the induction, and the jaws can be opened with a diameter of 36mm and can be accurately stuck.

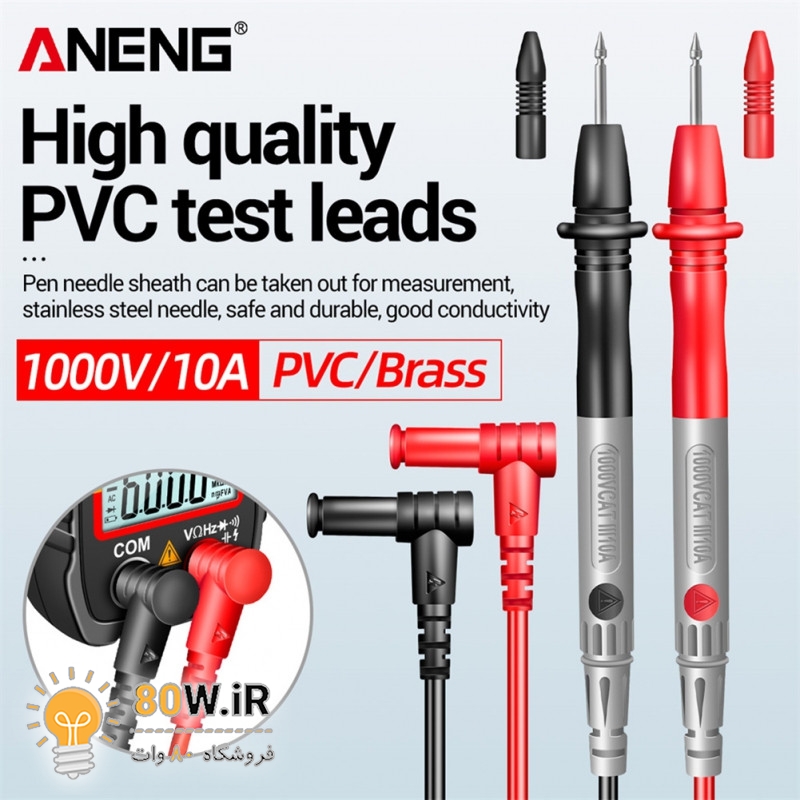

2. Comes with test pen, grade 1000V/10A test pen overall length 95cm, PVC/brass material is safe and durable.
3. The soft silicone buttons are comfortable to the touch and have a strong sense of pauses, which is actually ergonomic.
4. High-definition backlit screen: LCD digital display is clear, the larger the count, the higher the precision.
5. Diversified measurement functions are complete, which can measure a variety of electronic components to meet your multi-functional needs.

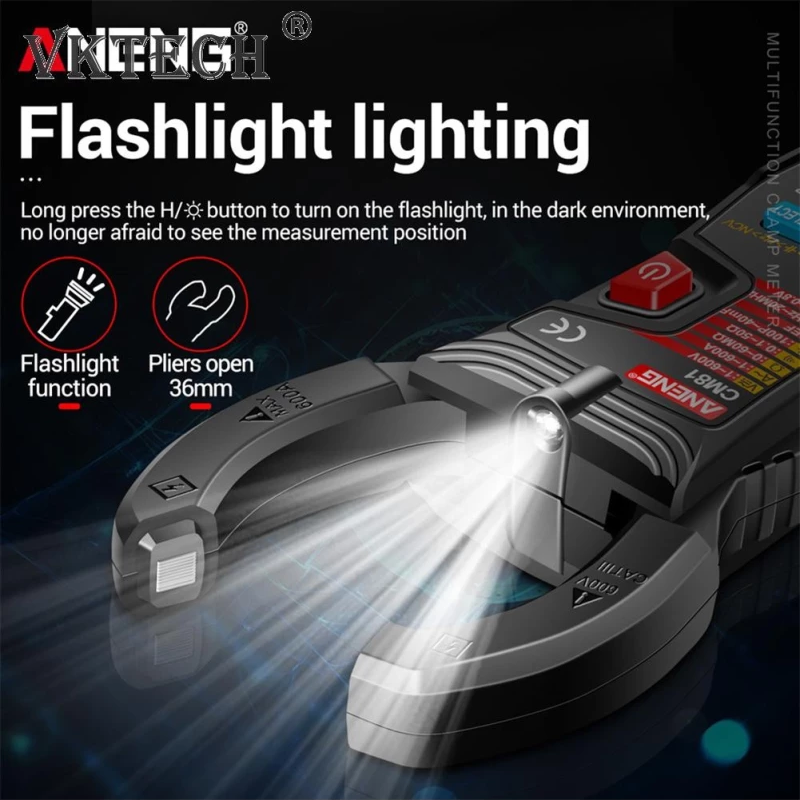

6. LED flashlight lighting, in the dark environment, no longer afraid to see the measurement position, to eliminate the risk of electric shock.

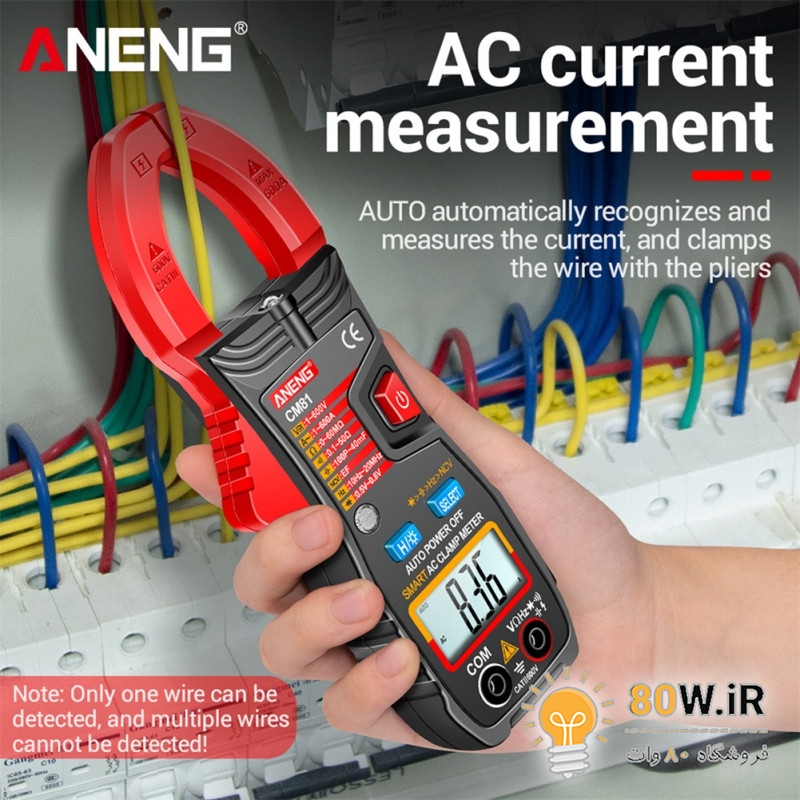

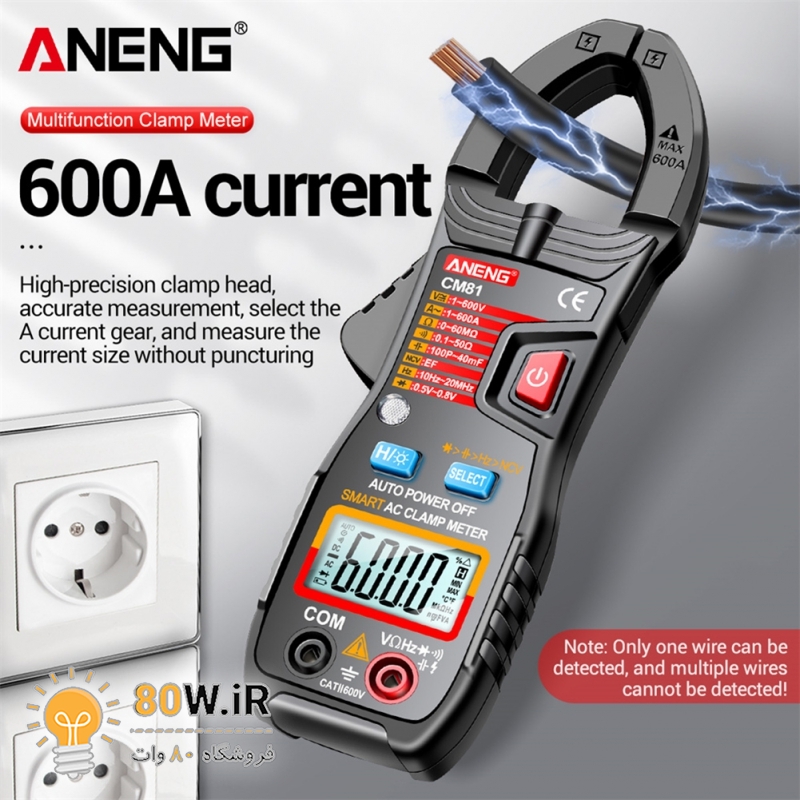

7. 600A AC current, high-precision induction clamp head, accurate measurement, select the A current gear, clamp the single-strand wire, and measure the current without puncturing.

Specifications:

AC voltage: 1V-600V 0.00V-1V ±(1.5%+8d)
DC voltage: 1V-600V 0.007V-1V ±(1.2%+5d)
AC current: 1A-600A 1mA-0.1A ±(2.8%+8d)
Resistance: 0Ω-60MΩ 0Ω-10KΩ ±(1.2%+5d)
Capacity: 100P-40mF 1pF-10uF ±(6%+10d)
Hz Frequency: 10Hz-20MHz 0.1Hz-10kHz ±(4.0%+10d)
NCV: Support
Shut-down: Support
Data retention: Support
low battery indicator: Support
Diode: Support
Buzzer: Support
Real-time temperature: Support
Range: Automatic
Battery: 2xAAA batteries (not included)
Material: ABS
Max count: 6000 count
Screen: HD backlit screen

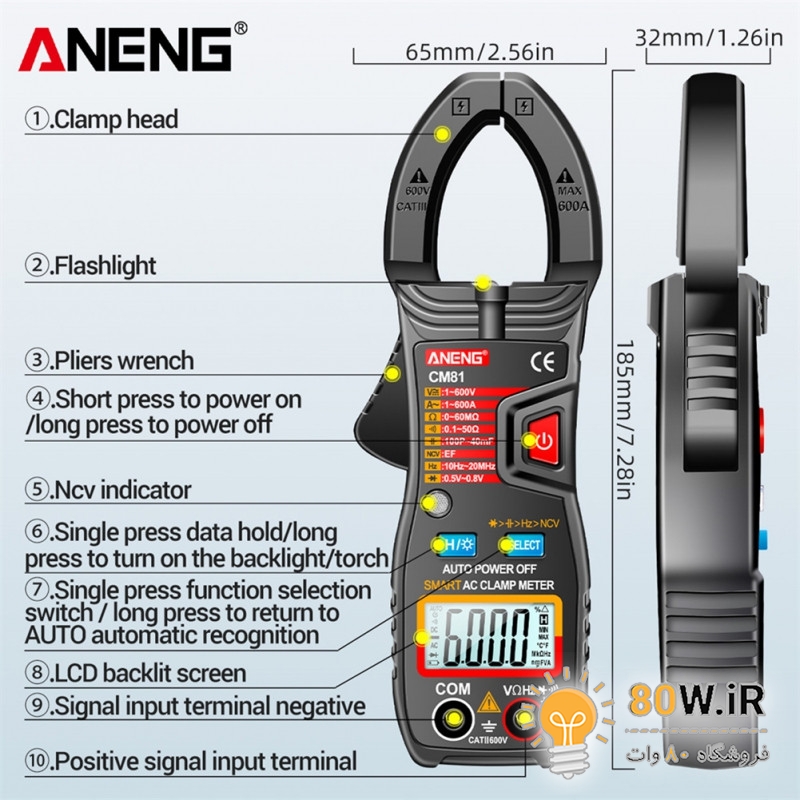

Jaw opening size: 36mm/1.41in
Overall length of the pen: 95cm
Pen material: PVC/brass

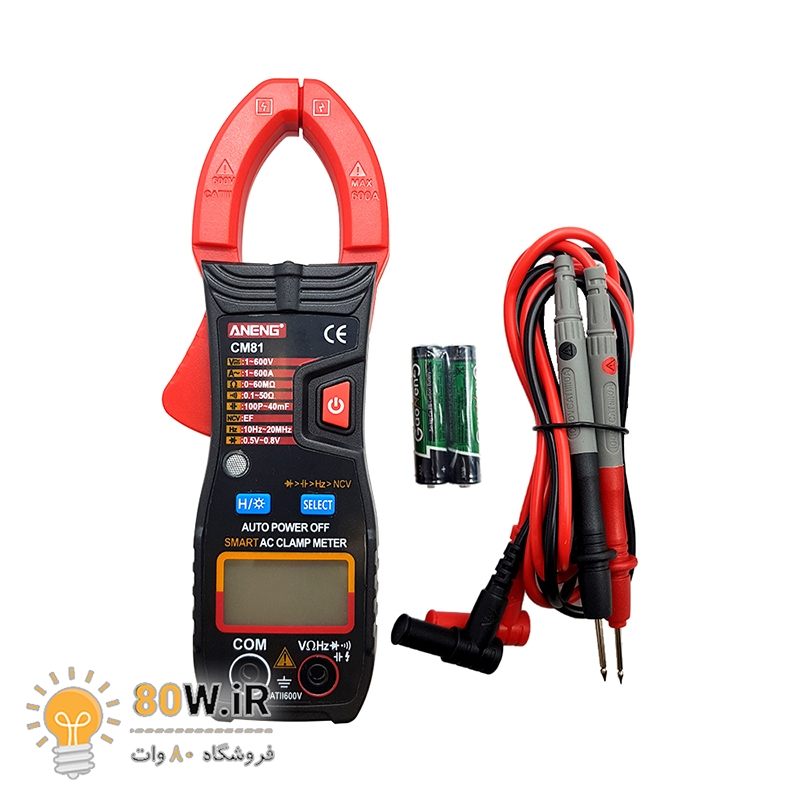

Package included:

1 x Digital Multimeter(Not included battery)
2 x Test leads
1 x User Manual
