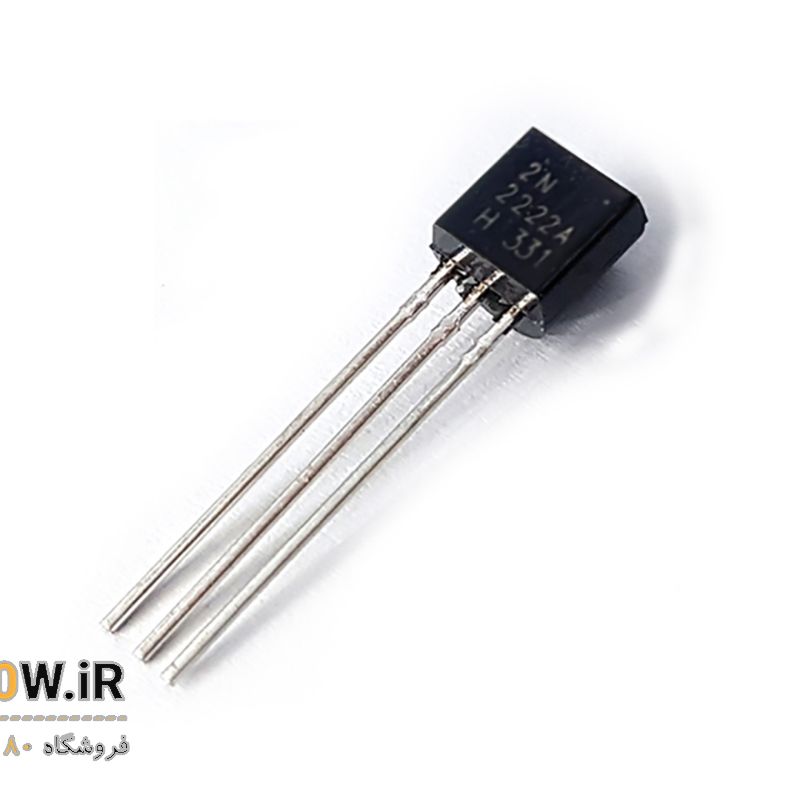

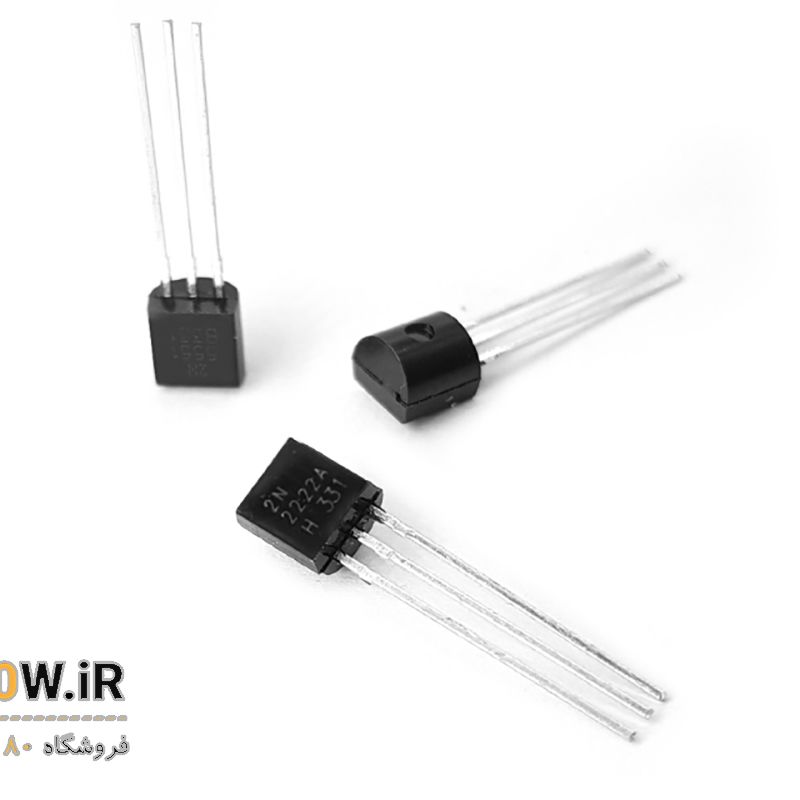

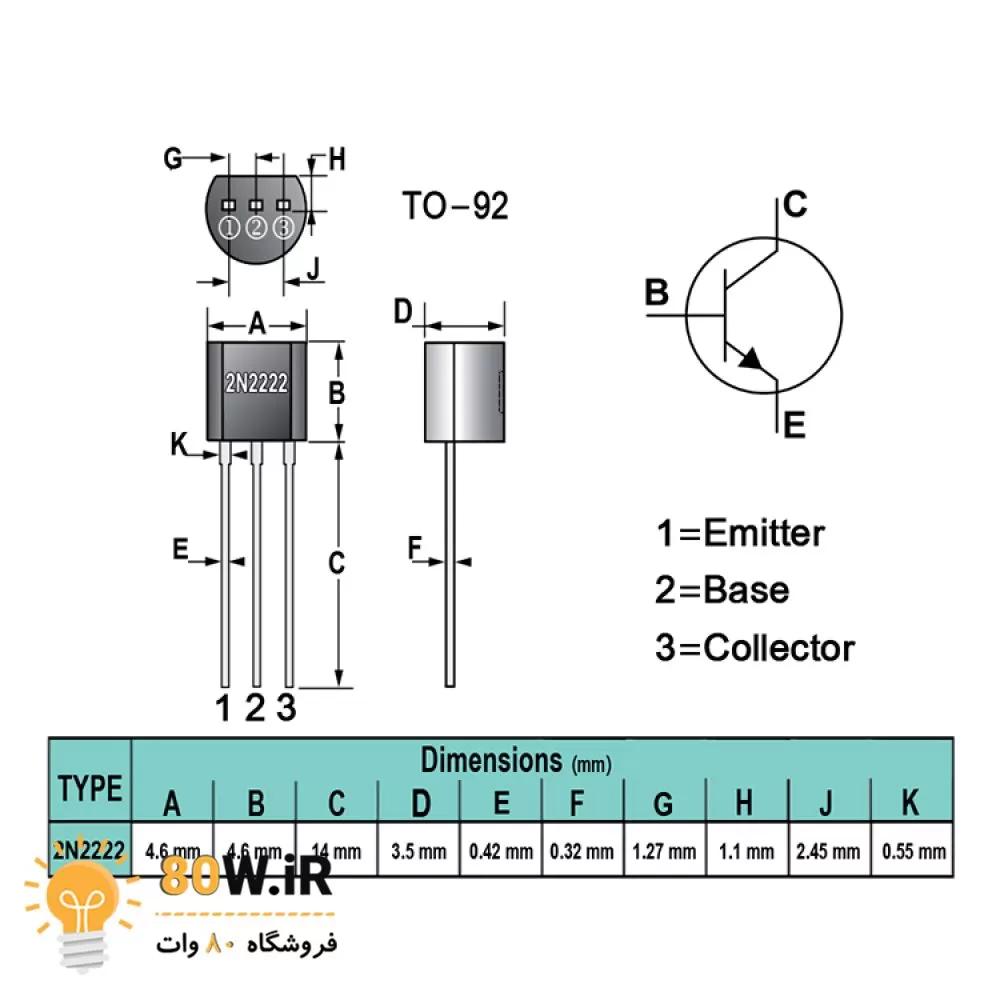

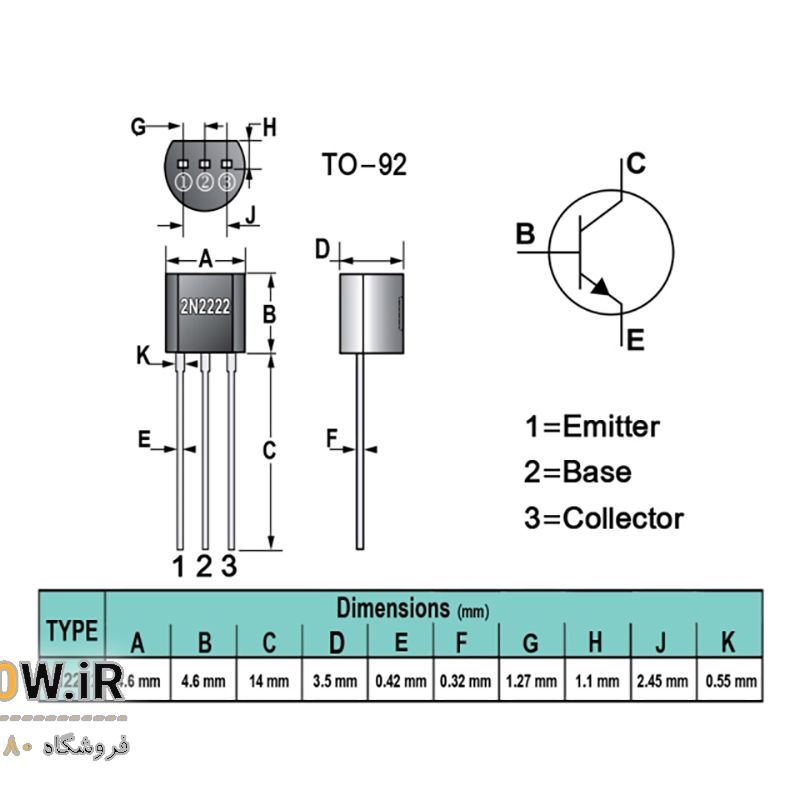

ترانزیستور 2N2222 پکیج TO-92 (بسته 20 عددی)

NS 30V 0.6A 0.5W TR /NPN

Specification

Type Designator: 2N2222
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 30 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.8 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 250 MHz
Collector Capacitance (Cc): 8 pF
Forward Current Transfer Ratio (hFE), MIN: 100
