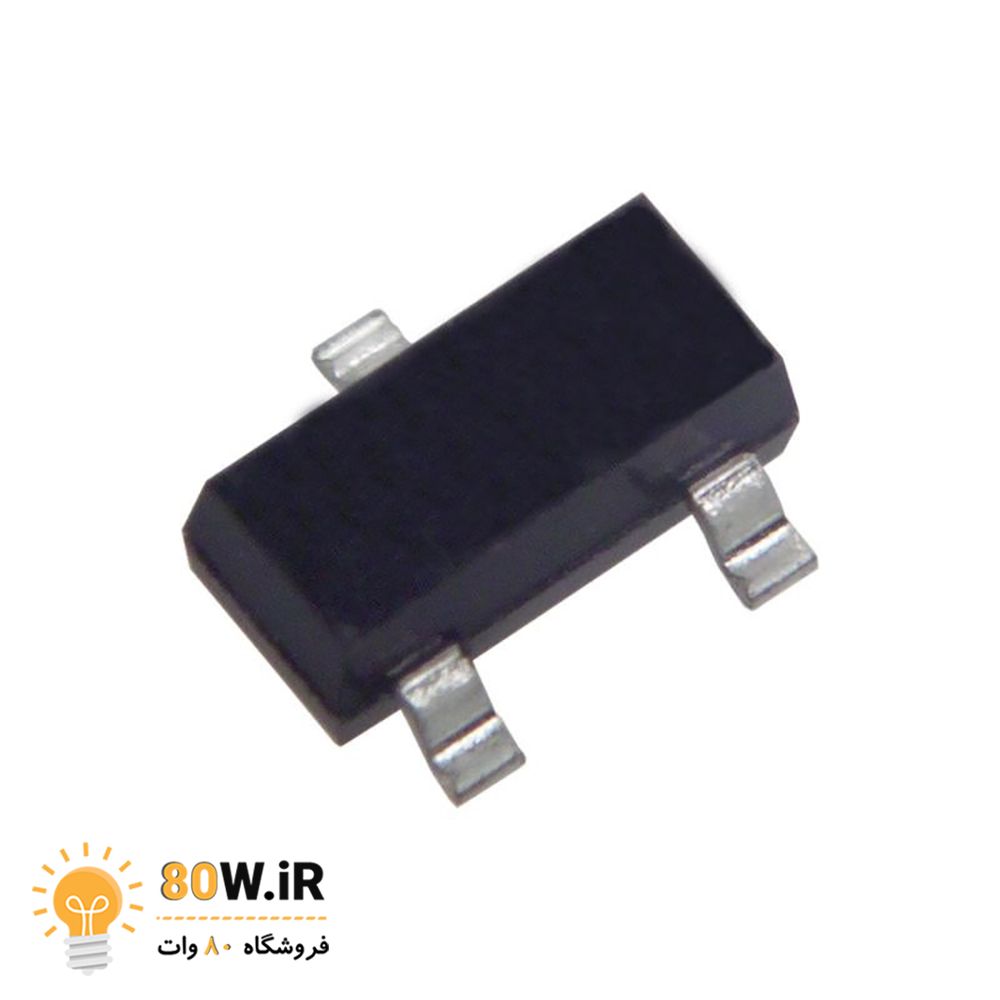

ترانزیستور smd BC817 کد ۶CW پکیج SOT-23 (بسته 20 عددی)

ترانزیستور تقویت کننده دو قطبی BJT – SI-NPN 45V 0.5A 0.25W 100MHZ SOT-23 BEC 6CW

Specification

Product Category: Bipolar Transistors – BJT
Mounting Style: SMD/SMT
Package / Case: SOT-23
Transistor Polarity: NPN
Product Type: BJTs – Bipolar Transistors
Subcategory: Transistors
Technology: Si
Collector- Emitter Voltage VCEO Max: 50 V
Emitter- Base Voltage VEBO: 5 V
Collector-Emitter Saturation Voltage: 700 mV
Maximum DC Collector Current: 500 mA
Pd – Power Dissipation: 250 mW
Gain Bandwidth Product fT: 100 MHz
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
DC Collector/Base Gain hfe Min: 40
DC Current Gain hFE Max: 600
