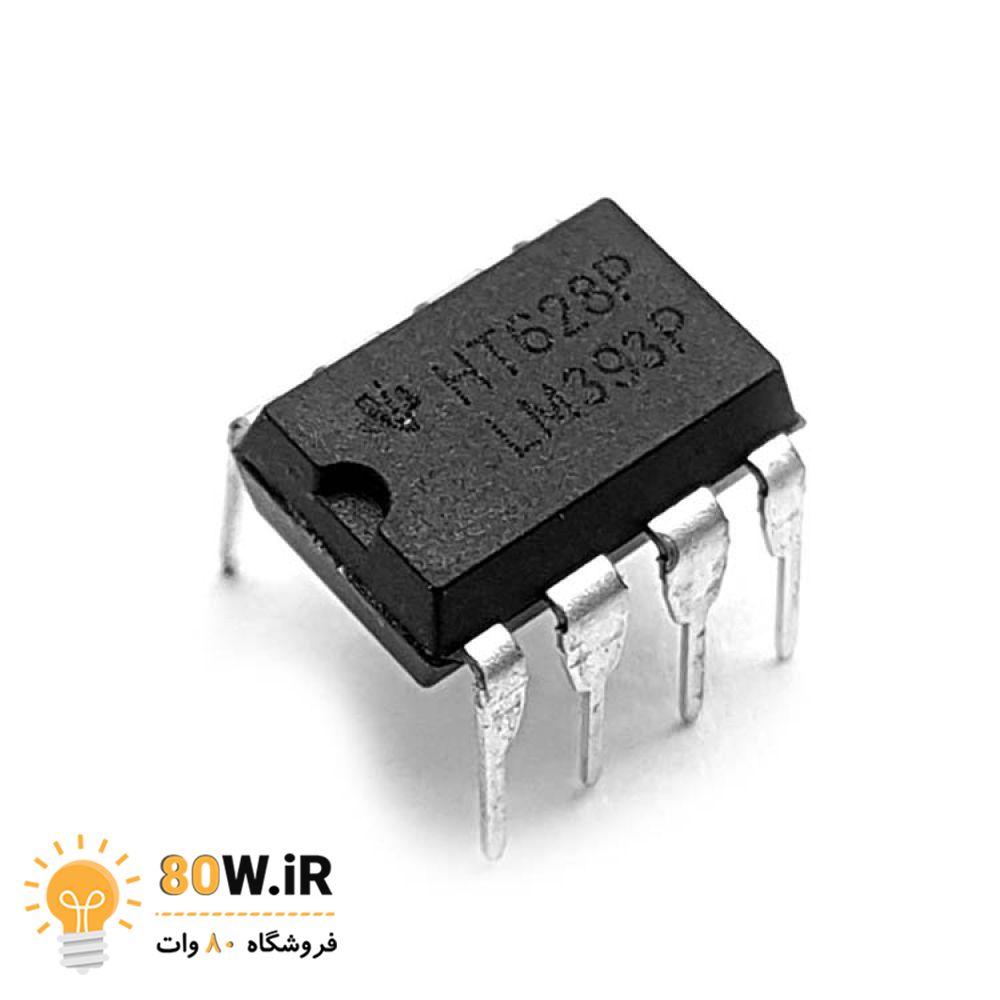

آپ امپ LM393

Manufacturer: Texas Instruments
Product Category: Analog Comparators
RoHS: Details
Mounting Style: Through Hole

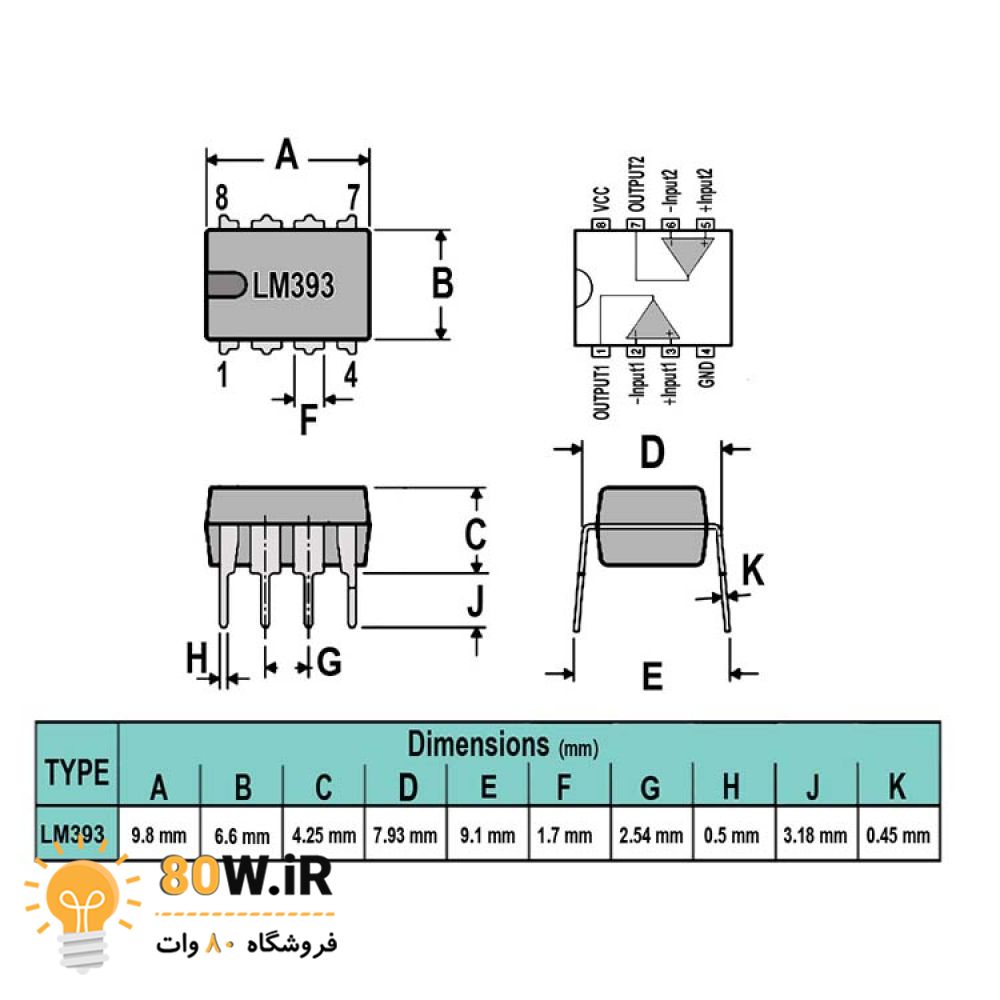

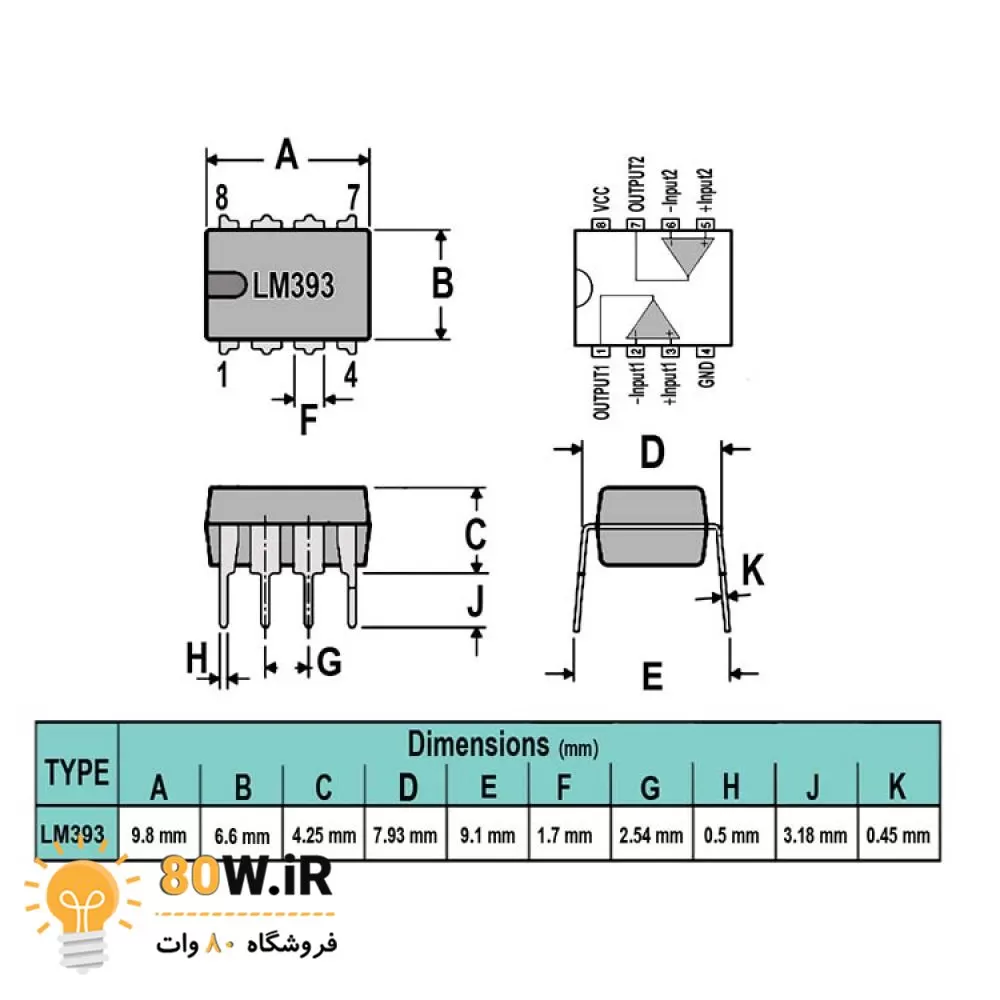

Package / Case: PDIP-8
Comparator Type: Differential
Number of Channels: 2 Channel
Output Type: Rail-to-Rail
Ib – Input Bias Current: 250 nA
Vos – Input Offset Voltage: 5 mV
Supply Voltage – Max: 36 V
Supply Voltage – Min: 2 V
Operating Supply Current: 200 uA
Response Time: 700 ns
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Packaging: Tube
Features: Small Size, Standard comparator
Product: Analog Comparators
Series: LM393-N
Brand: Texas Instruments
GBP – Gain Bandwidth Product: –
Operating Supply Voltage: 2 V to 36 V
