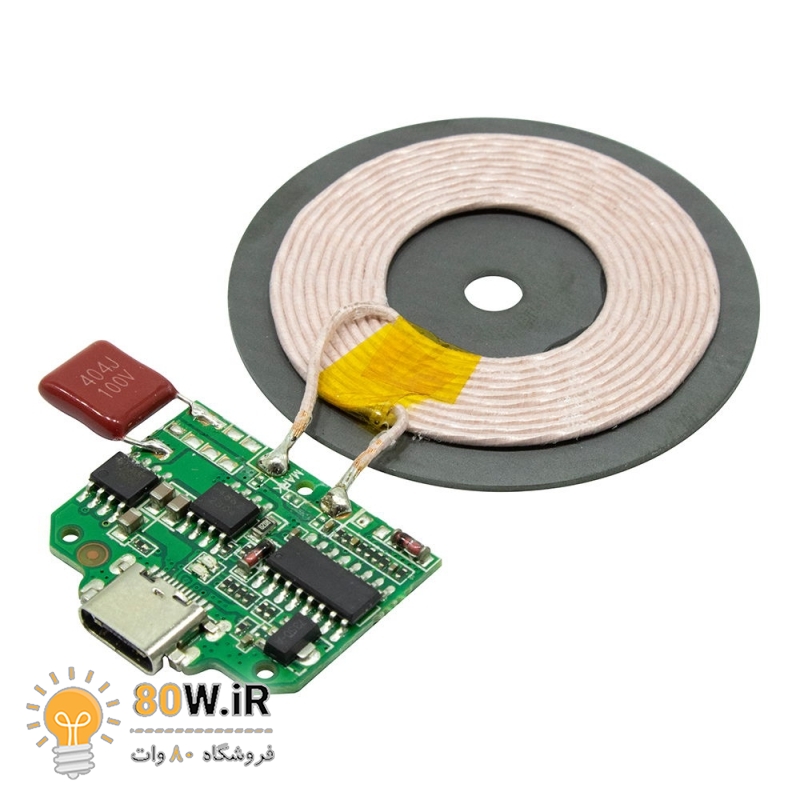

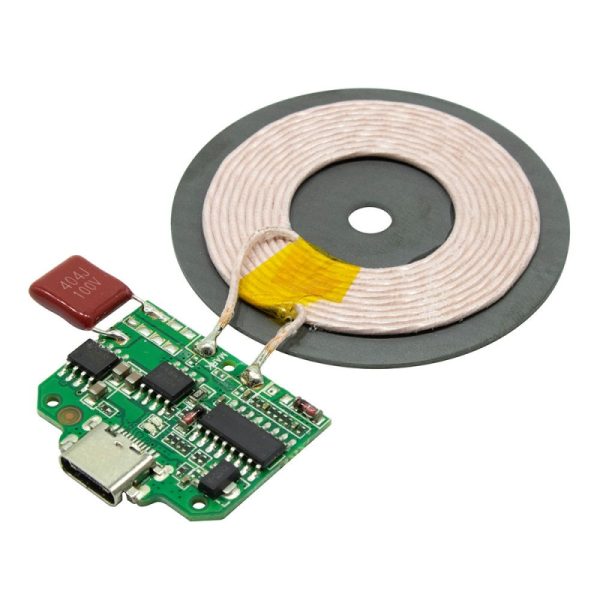

ماژول شارژر وایرلس 15W با ورودی Type-C به همراه صفحه کویل شارژ

شارژر فرستنده وایرلس دارای خروجی 15 وات با ورودی TYPE-C مناسب برای شارژ وایرلس موبایل و سایر دستگاه ها

مشخصات

• ولتاژ ورودی: 5v
• ولتاژ خروجی: 5v-1A, 9v-1.1A, 9v-1.66A
• توان: 5w/7.5w/10w/15w

Introduction

This product is developed and designed for the wireless charging and power supply of various series of small electronic products. It has the characteristics of small size, extremely easy to use, high efficiency and low price. It is mainly suitable for mobile electronic products such as mobile phones, games Various product applications such as computer, fish tank, MP3, MP4, adult products, digital cameras, electric shavers, learning machines, medical treatment, underwater products, etc.; due to the use of contactless charging and power supply, the product can be completely sealed, waterproof and dustproof ; Increase the service life of the product and make it more convenient to use.

Specification

comply with wpc v1.2.3 wireless charging specification
product standard: Qi
built in mcu, 12 bit high precision adc, communication decoding
input voltage/current: 5v-2A
output current: 5v-1A, 9v-1.1A, 9v-1.66A
support the maximum power of 15W
75% – 85% efficiency
sensing distance ≤ 8mm
working frequency: 100-200khz
support dynamic energy balance
smart identification, 5w/7.5w/10w/15w charging

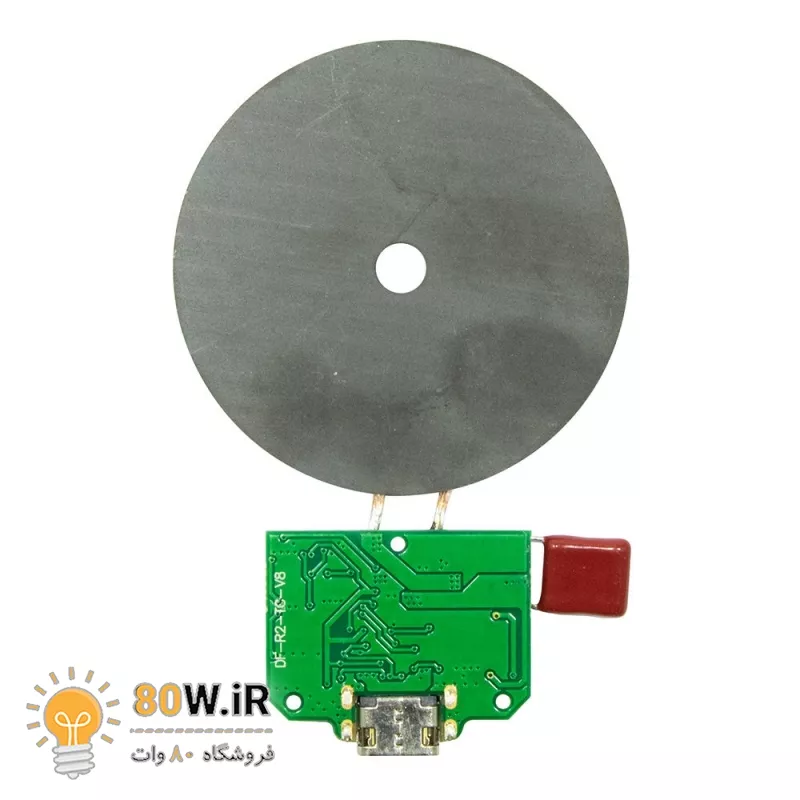

Pcb board size

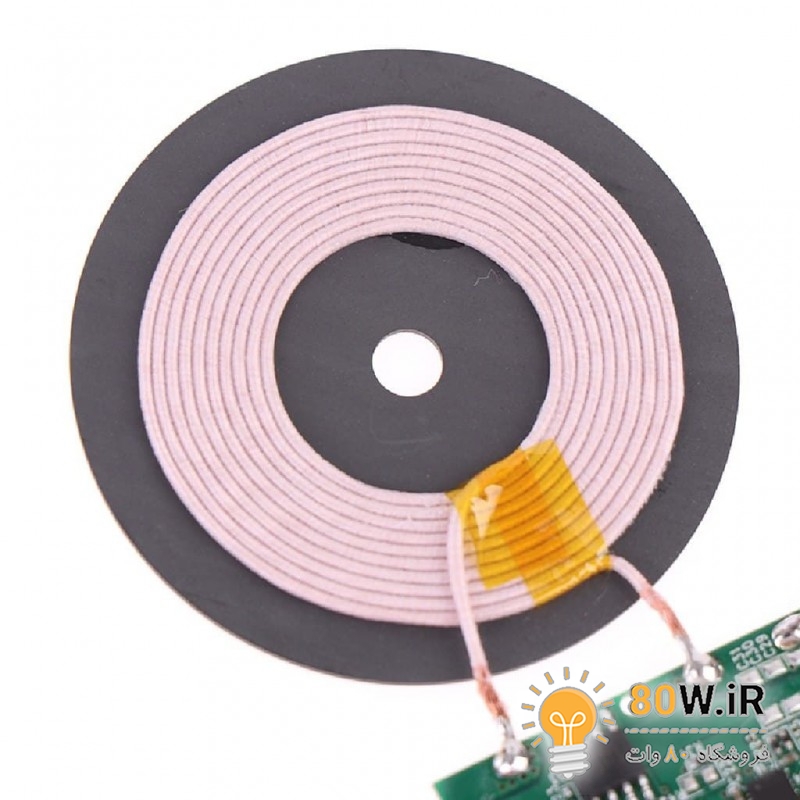

length 21mm * width 32mm * thickness 2.0mm coil diameter: 45mm
