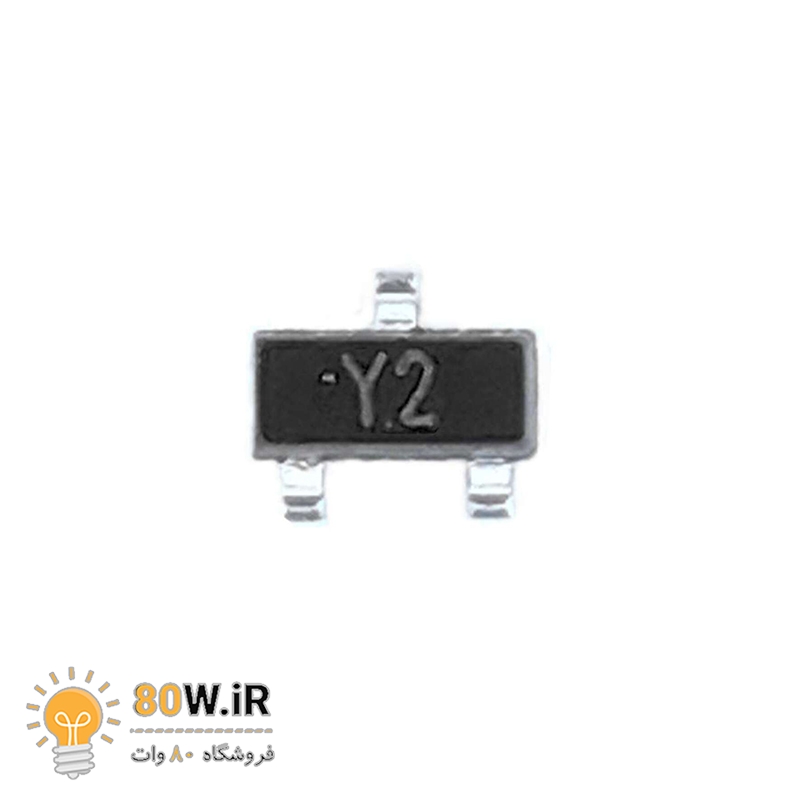

ترانزیستور SS8550 smd کد 1HD پکیج SOT-23 (بسته 20 عددی)

 Specification

Product Category:     Bipolar Transistors – BJT
RoHS:     RoHS Compliant Details
Mounting Style:     SMD/SMT
Package/Case:     SOT-23
Transistor Polarity:     PNP
Configuration:     Single
Collector- Emitter Voltage VCEO Max:     25 V
Collector- Base Voltage VCBO:     40 V
Emitter- Base Voltage VEBO:     1.6 V
Collector-Emitter Saturation Voltage:     0.5 V
Gain Bandwidth Product fT:     100 MHz
Maximum Operating Temperature:     + 150 C
Series:     MMSS8550
Continuous Collector Current:     1.5 A
DC Collector/Base Gain hFE Min:     40
DC Current Gain hFE Max:     350
Minimum Operating Temperature:     – 55 C
Packaging:     Reel
Pd – Power Dissipation:     0.625 W
Factory Pack Quantity:     3000
Unit Weight:     201 mg
