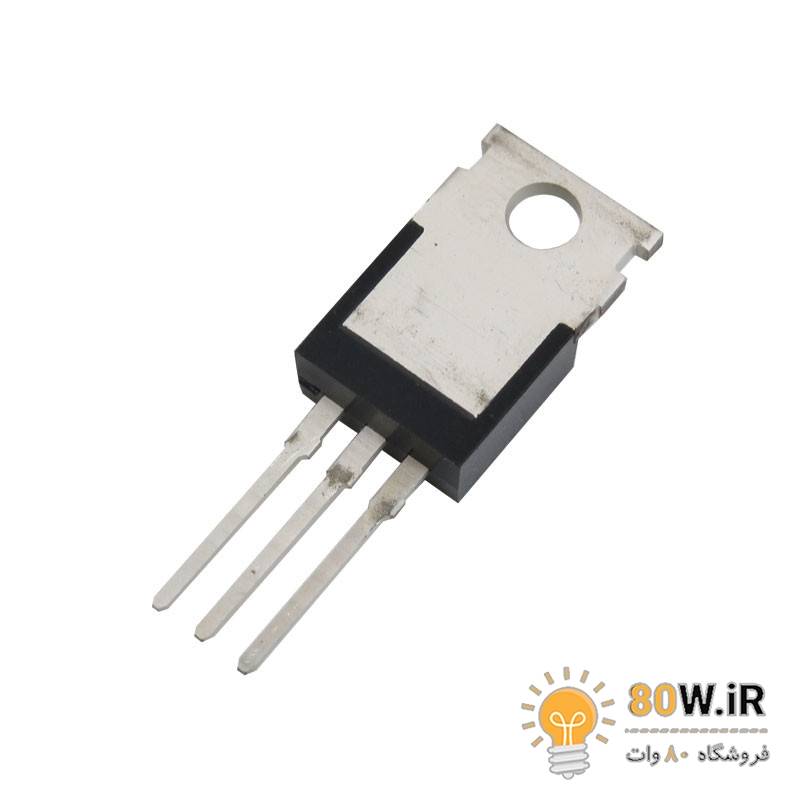

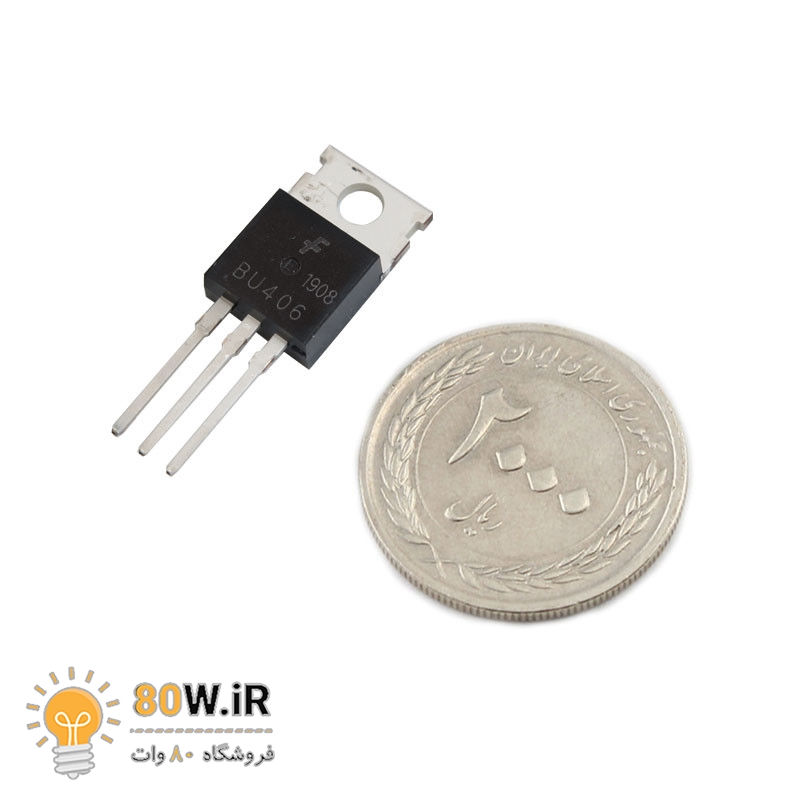

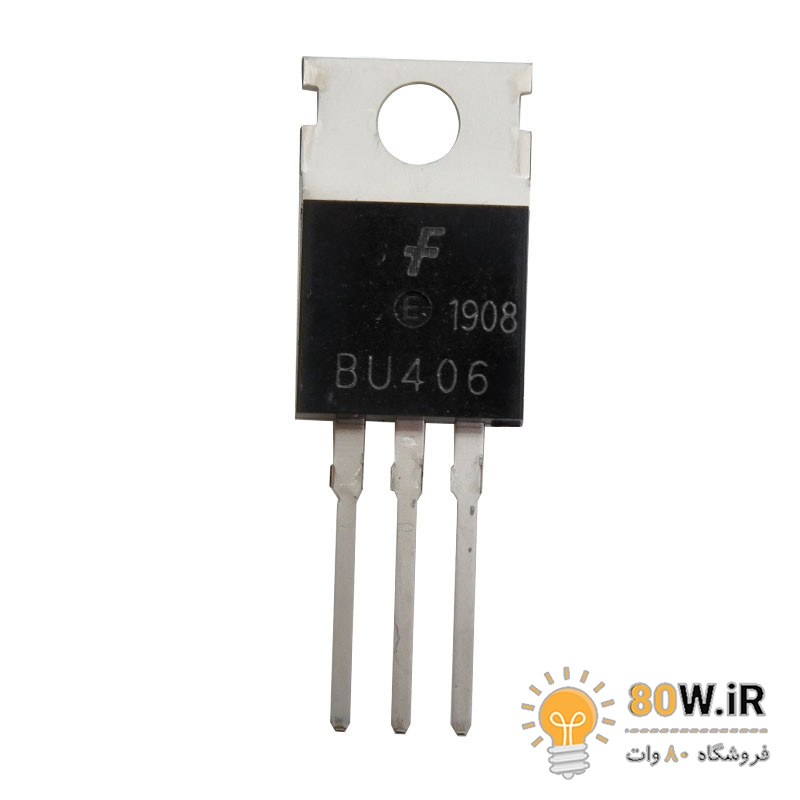

ترانزیستور BU406 پکیج TO-220

ترانزیستور BJT نوع NPN مدل BU406 پکیج TO-220

Specification

Product Category: Bipolar Transistors – BJT
Mounting Style: Through Hole
Package/Case: TO-220-3
Transistor Polarity: NPN
Configuration: Single
Collector- Emitter Voltage VCEO Max: 200 V
Collector- Base Voltage VCBO: 400 V
Emitter- Base Voltage VEBO: 6 V
Collector-Emitter Saturation Voltage: 1 V
Maximum DC Collector Current: 7 A
Pd – Power Dissipation: 60 W
Gain Bandwidth Product fT: 10 MHz
Minimum Operating Temperature: – 65 C
Maximum Operating Temperature: + 150 C
