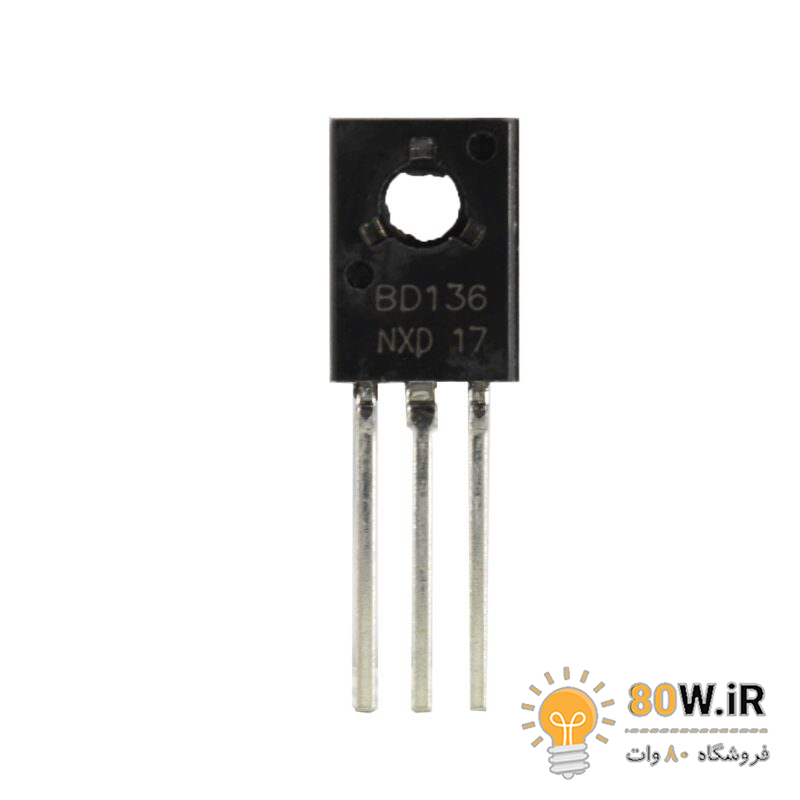

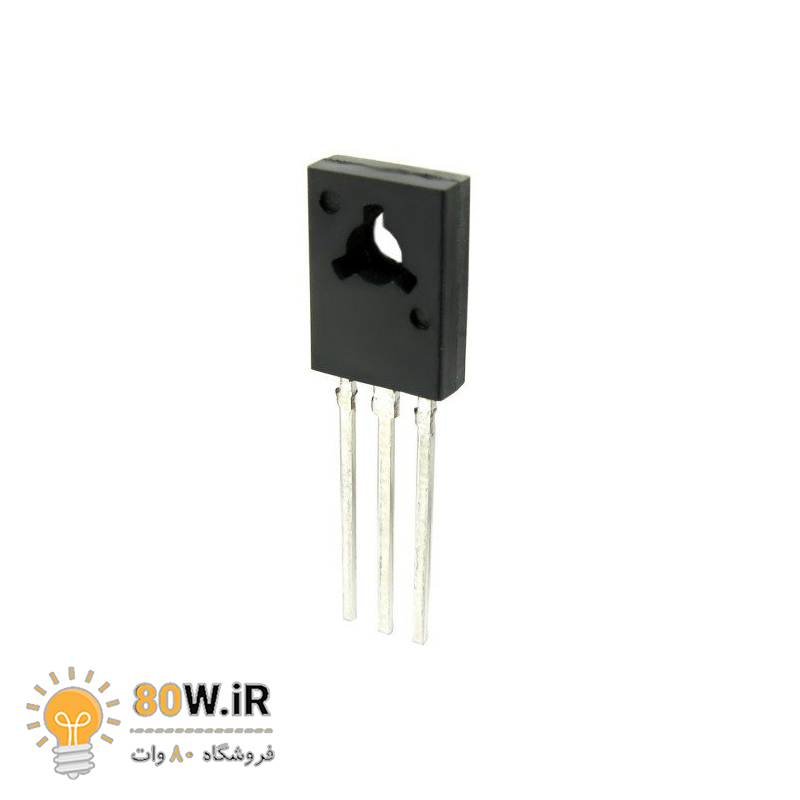

ترانزیستور BD136 پکیج TO-126

Specification

• Product Category: Bipolar Transistors – BJT
• Mounting Style: Through Hole
• Transistor Polarity: PNP
• Technology: Si
• Series: BD136
• Collector- Emitter Voltage VCEO Max: 45 V
• Collector- Base Voltage VCBO: 45 V
• Emitter- Base Voltage VEBO: 5 V
• Collector-Emitter Saturation Voltage: 500 mV
• Maximum DC Collector Current: 1.5 A
• Pd – Power Dissipation: 1.25 W
• Continuous Collector Current: – 1.5 A
• DC Collector/Base Gain hfe Min: 25
• DC Current Gain hFE Max: 250
