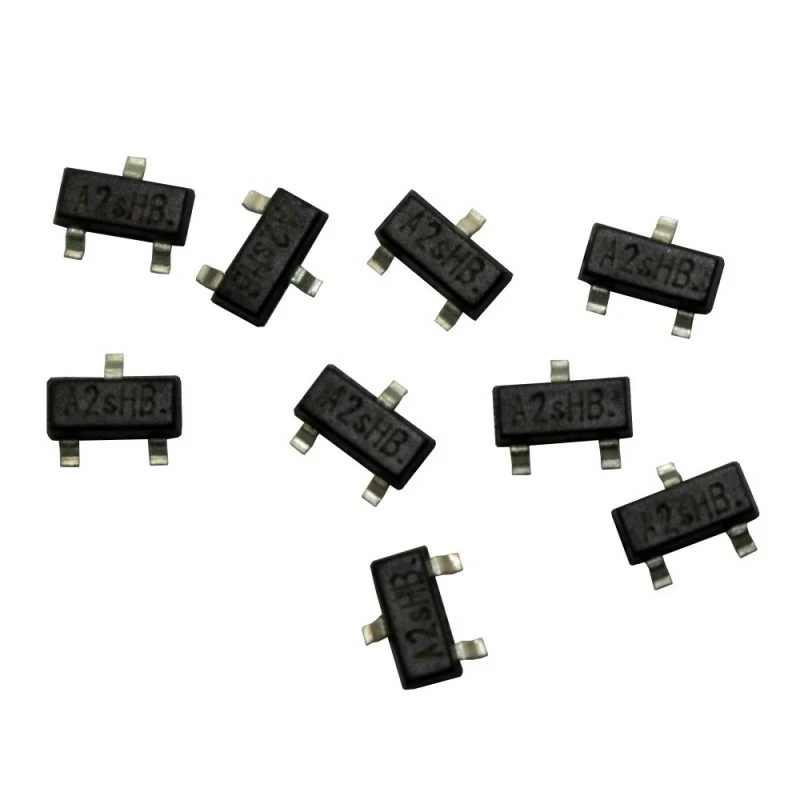

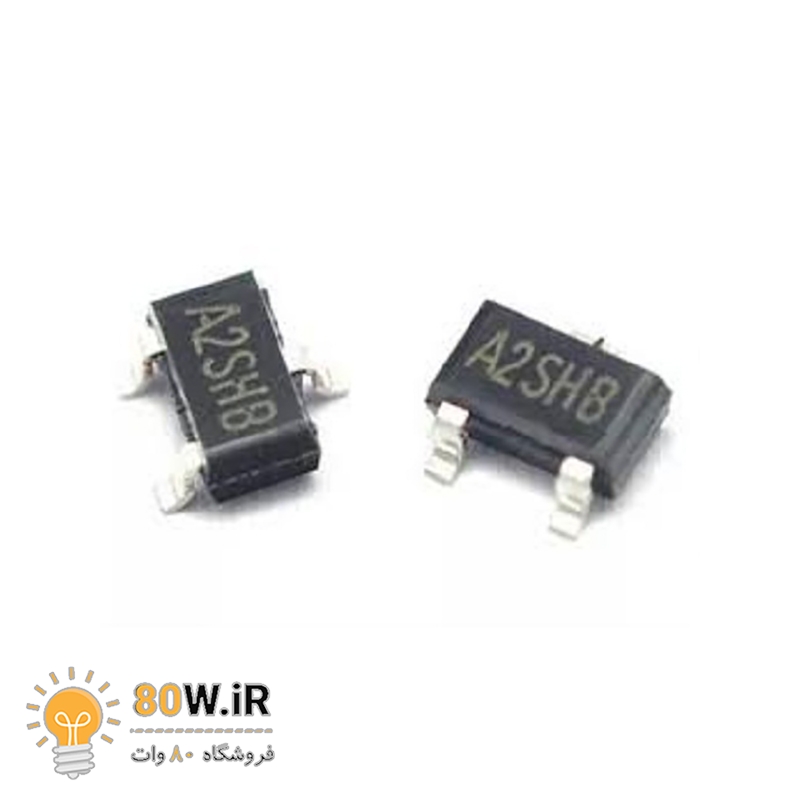

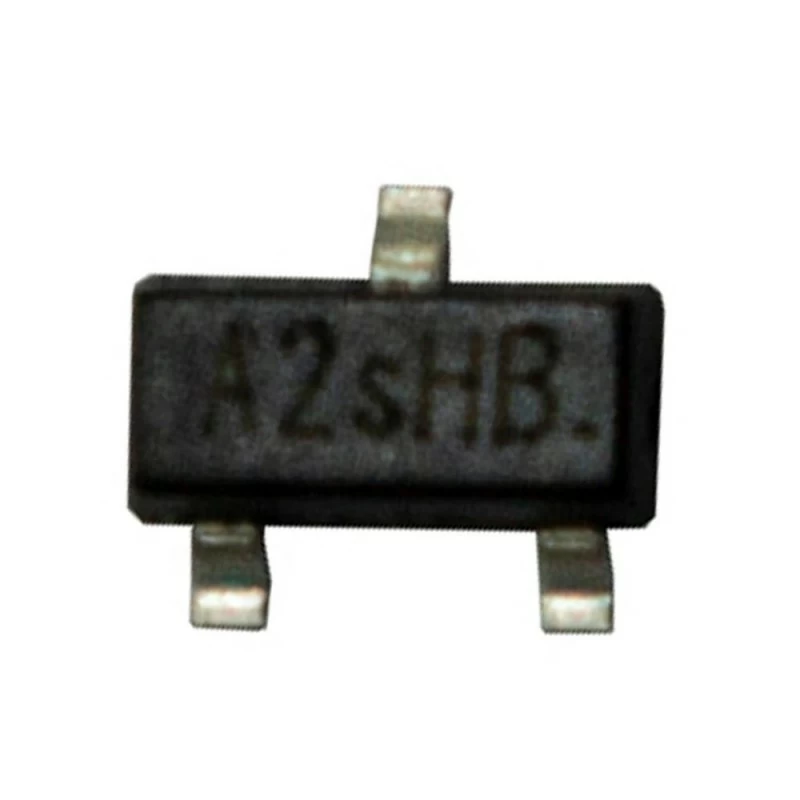

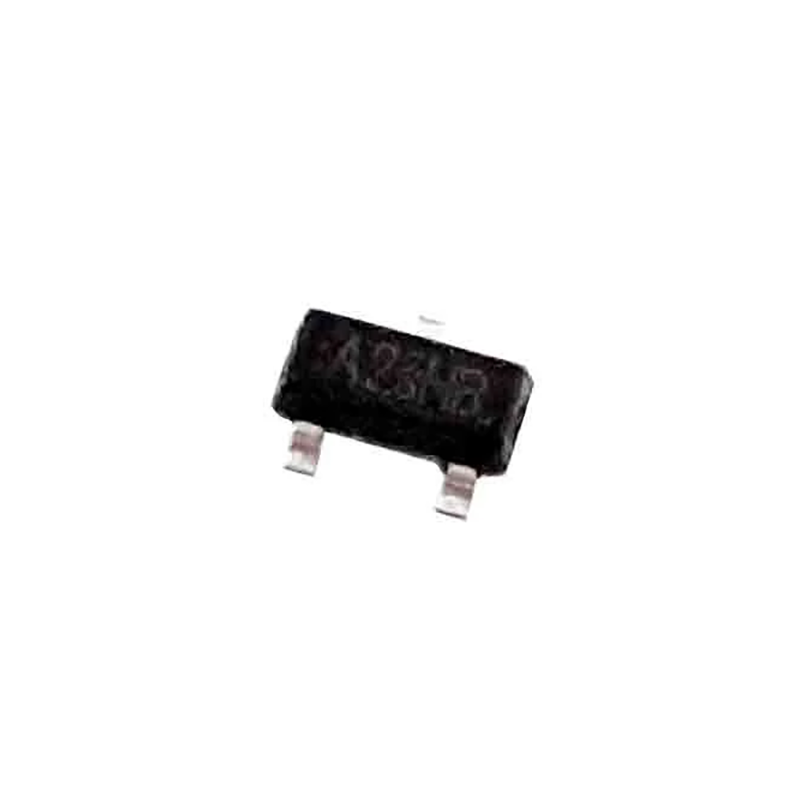

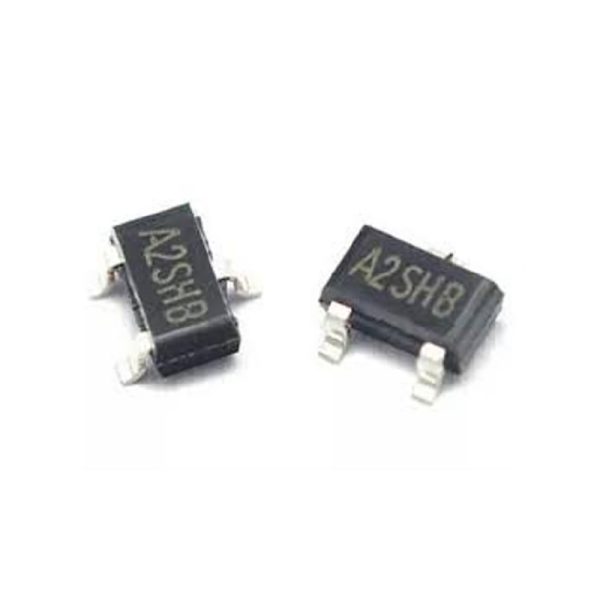

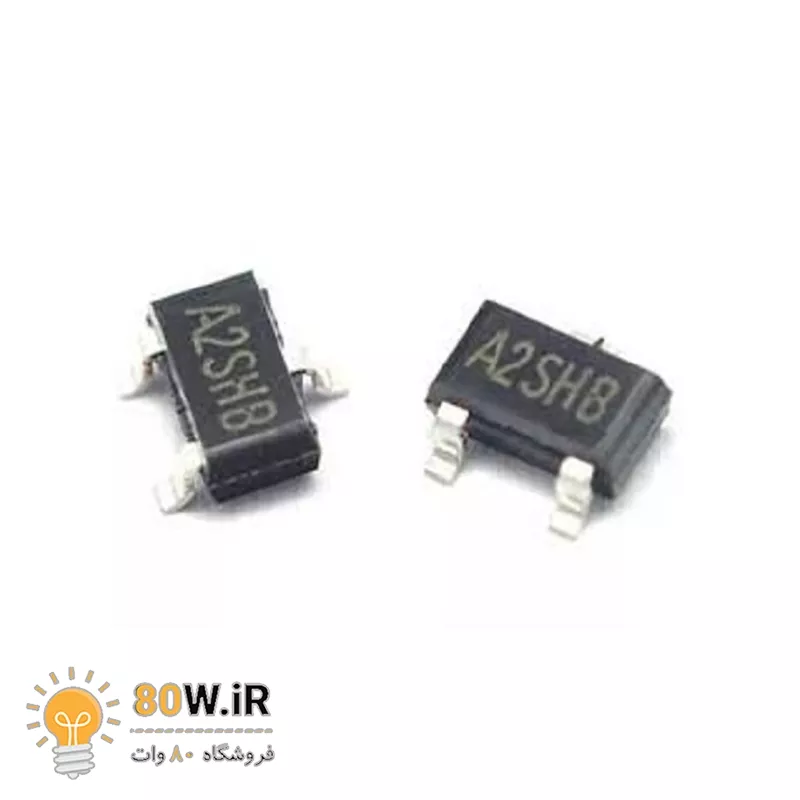

ماسفت Si2302 smd پکیج SOT-23 کد A2SHB (بسته 10 عددی)

ماسفت Si2302 smd پکیج SOT-23 کد A2SHB

Specification
Mounting Style: SMD/SMT
Package / Case: SOT-23-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds – Drain-Source Breakdown Voltage: 20 V
Id – Continuous Drain Current: 2.5 A
Rds On – Drain-Source Resistance: 56 mOhms
Vgs – Gate-Source Voltage: 8 V
Qg – Gate Charge: 5.4 nC
Minimum Operating Temperature: – 65 C
Maximum Operating Temperature: + 150 C
Pd – Power Dissipation: 830 mW
Configuration: Single
Channel Mode: Enhancement
Height: 1 mm
Length: 3 mm
Product: MOSFET Small Signal
Transistor Type: 1 N-Channel
Width: 1.4 mm
Brand: Nexperia
Forward Transconductance – Min: 8 S
Fall Time: 34 ns
Product Type: MOSFET
Rise Time: 23 ns
