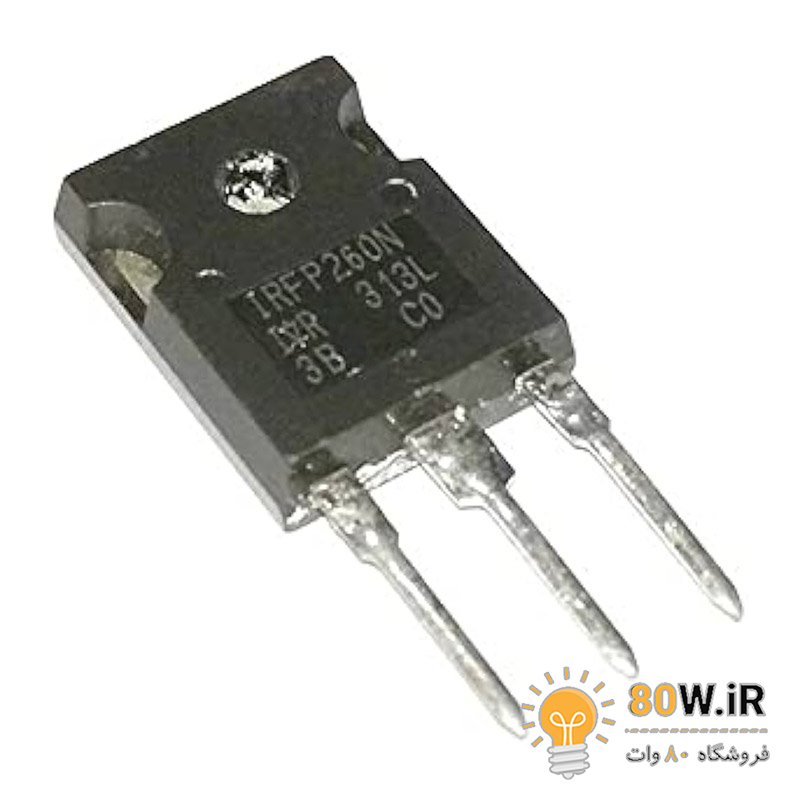

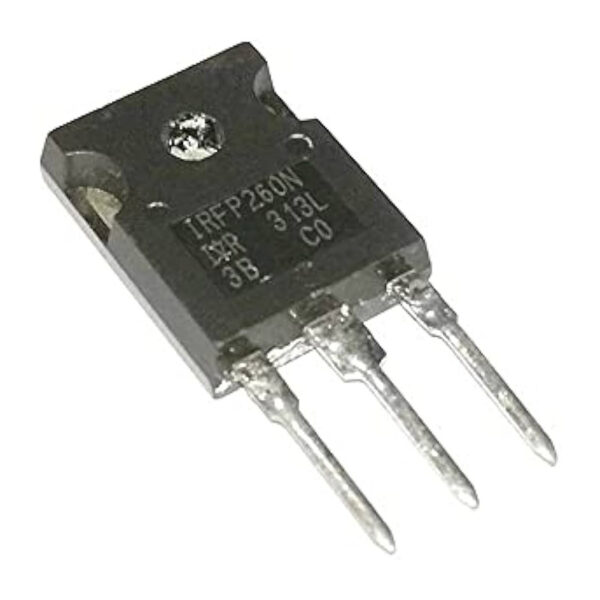

ماسفت IRFP260 نوع N-Channel پکیج TO-247

ماسفت 200 ولت 50 آمپر IRFP260 نوع N-Channel  پکیج TO-247

Specification

Product Category: MOSFET
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-247-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds – Drain-Source Breakdown Voltage: 200 V
Id – Continuous Drain Current: 50 A
Rds On – Drain-Source Resistance: 40 mOhms
Vgs – Gate-Source Voltage: – 20 V, + 20 V
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 175 C
Pd – Power Dissipation: 300 W
Channel Mode: Enhancement
Configuration: Single
Fall Time: 48 ns
Height: 20.7 mm
Length: 15.87 mm
Product Type: MOSFET
Rise Time: 60 ns
Transistor Type: 1 N-Channel
