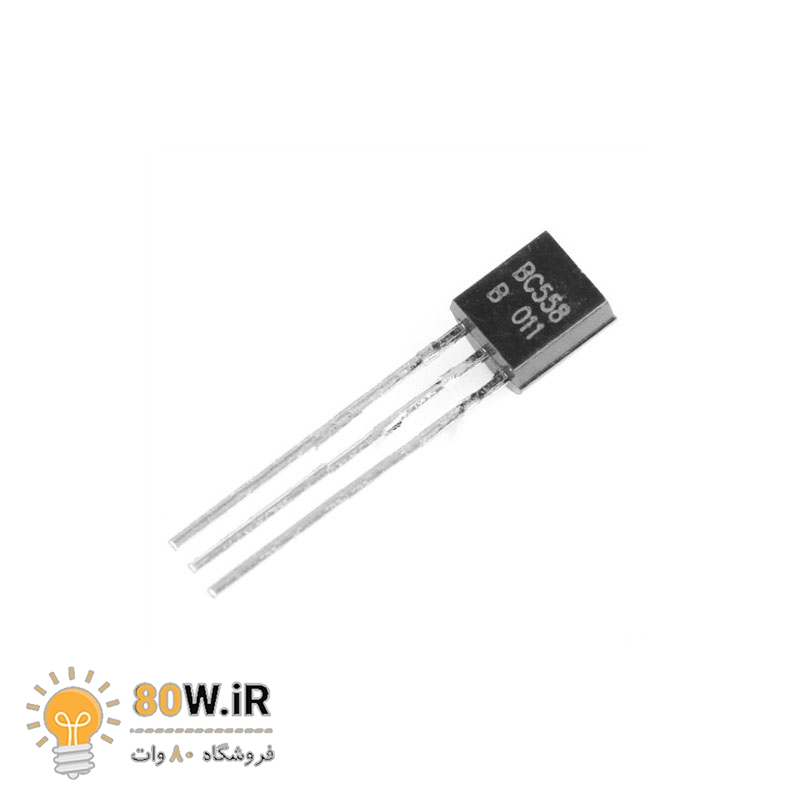

ترانزیستور PNP مدل BC558 پکیج TO-92 (بسته 10 عددی)

Part Number: BC558

RoHS:     RoHS Compliant Details
Mounting Style:     Through Hole
Package / Case:     TO-92-3 Kinked Lead
Transistor Polarity:     PNP
Configuration:     Single
Collector- Emitter Voltage VCEO Max:     – 30 V
Collector- Base Voltage VCBO:     – 30 V
Emitter- Base Voltage VEBO:     – 5 V
Collector-Emitter Saturation Voltage:     – 250 mV
Maximum DC Collector Current:     – 0.1 A
Gain Bandwidth Product fT:     150 MHz
Maximum Operating Temperature:     + 150 C
Series:     BC558
Continuous Collector Current:     – 0.1 A
DC Collector/Base Gain hfe Min:     110
DC Current Gain hFE Max:     800
Height:     5.33 mm
Length:     5.2 mm
Minimum Operating Temperature:     – 65 C
Packaging:     Ammo Pack
Pd – Power Dissipation:     0.5 W
