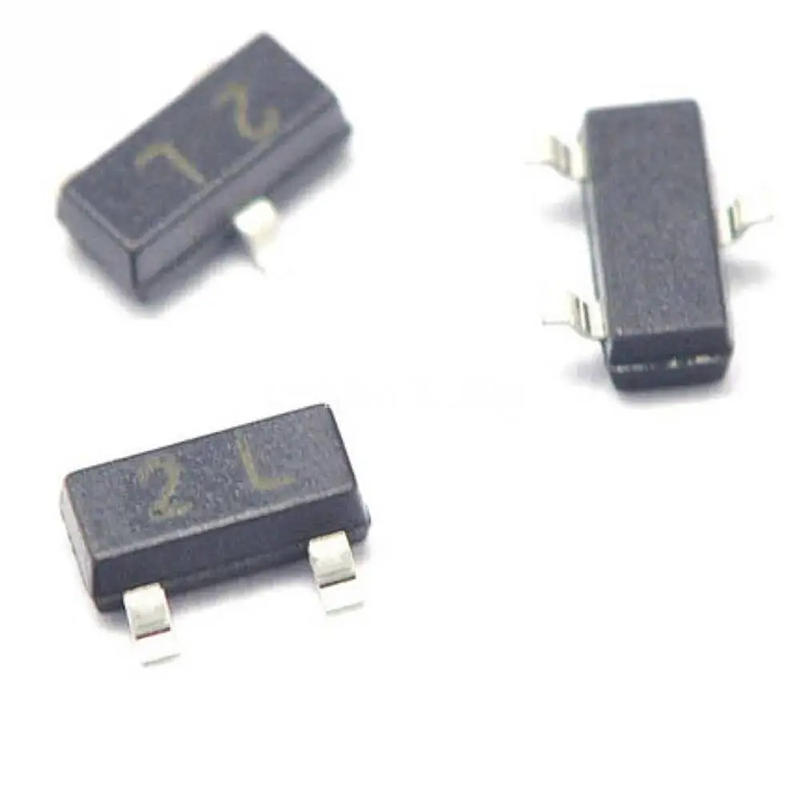

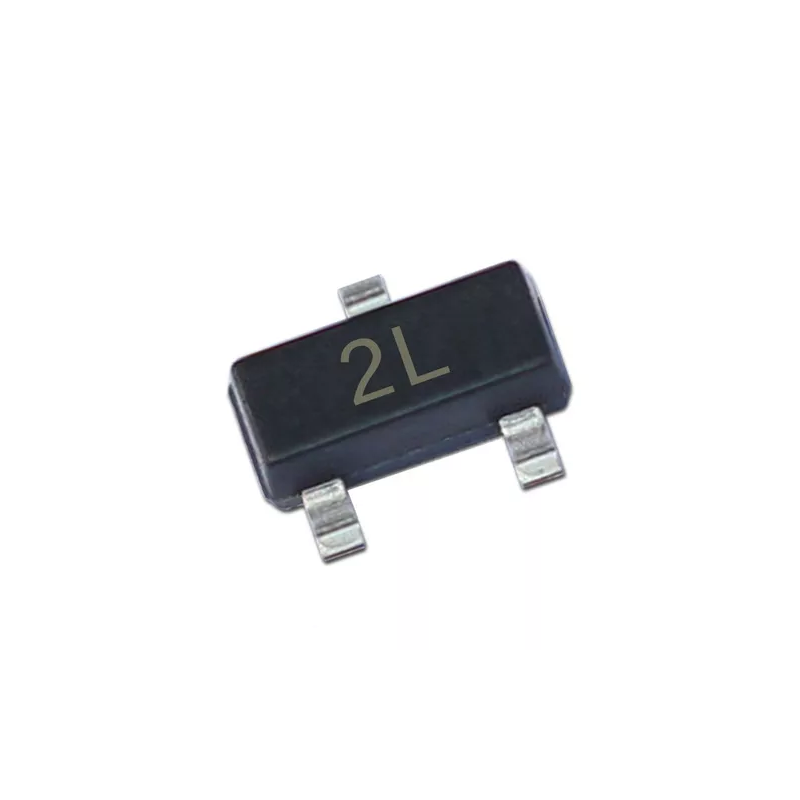

ترانزیستور MMBT5401 smd کد 2L پکیج SOT-23 (بسته 20 عددی)

ترانزیستور پی ان پی (PNP) پکیج اس ام دی (SMD) SOT-23

Specification

Type Designator: MMBT5401

SMD Transistor Code: 2L

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.2 W

Maximum Collector-Base Voltage |Vcb|: 160 V

Maximum Collector-Emitter Voltage |Vce|: 150 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.6 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 100 MHz

Collector Capacitance (Cc): 10 pF

Forward Current Transfer Ratio (hFE), MIN: 60

Noise Figure, dB: –

Package: SOT23
