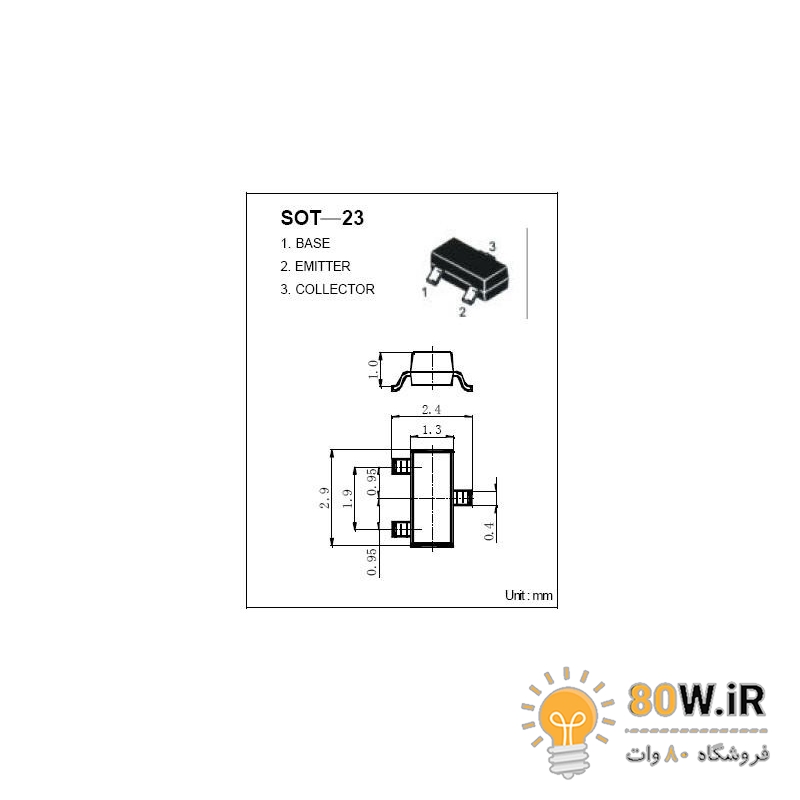

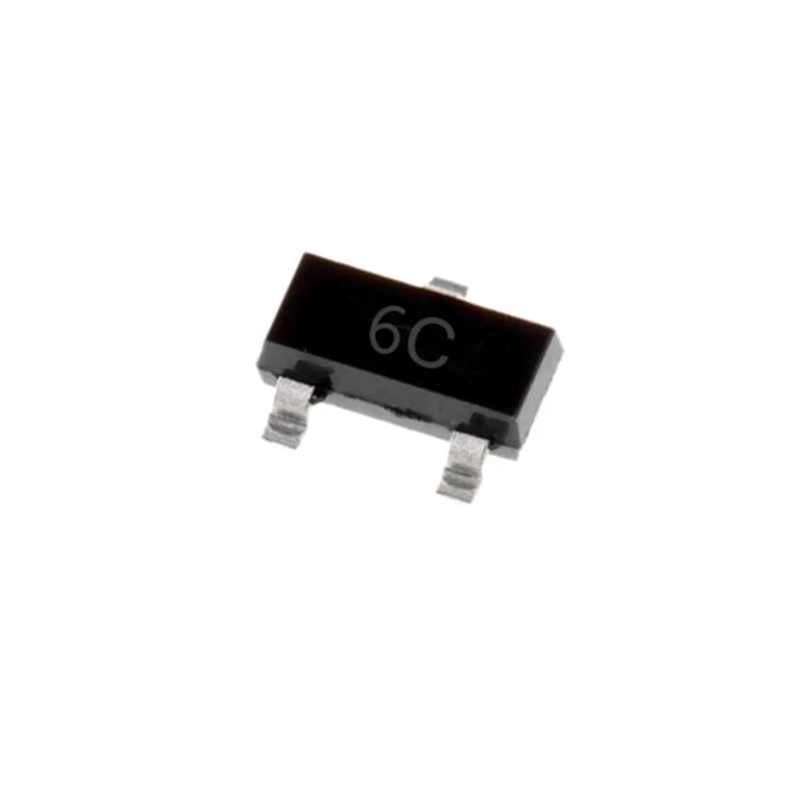

ترانزیستور BC337 smd کد 6C پکیج SOT-23 (بسته 20 عددی)

ترانزیستور BJT نوع NPN مدل BC337 پکیج SOT-23 SMD

Specification

Product Type: BJTs – Bipolar Transistors
Product Category: Bipolar Transistors – BJT
Mounting Style: SMD/SMT
Transistor Polarity: NPN
Collector- Emitter Voltage VCEO Max: 45 V
Collector- Base Voltage VCBO: 50 V
Emitter- Base Voltage VEBO: 5 V
Maximum DC Collector Current: 0.5 A
Gain Bandwidth Product fT: 100 MHz
Minimum Operating Temperature: – 65 C
Maximum Operating Temperature: + 150 C
DC Current Gain hFE Max: 100 at 100 mA, 1 V
Pd – Power Dissipation: 625 mW
