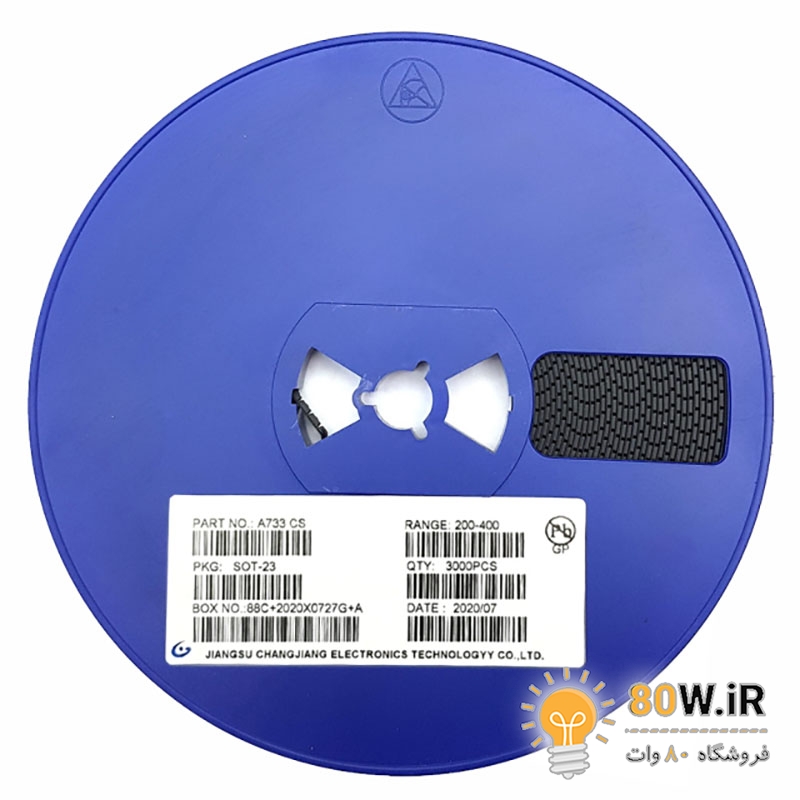

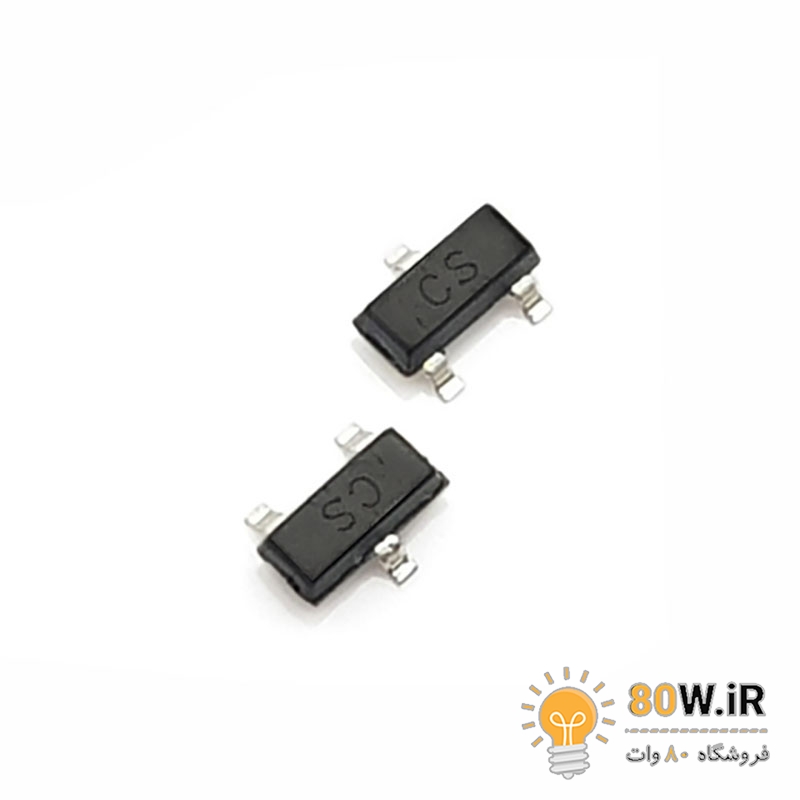

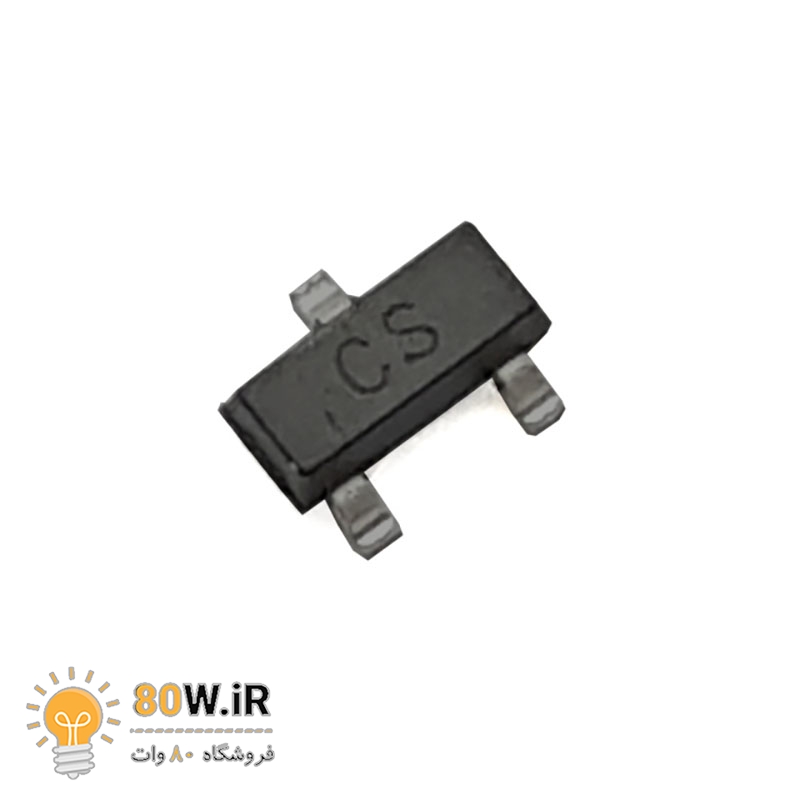

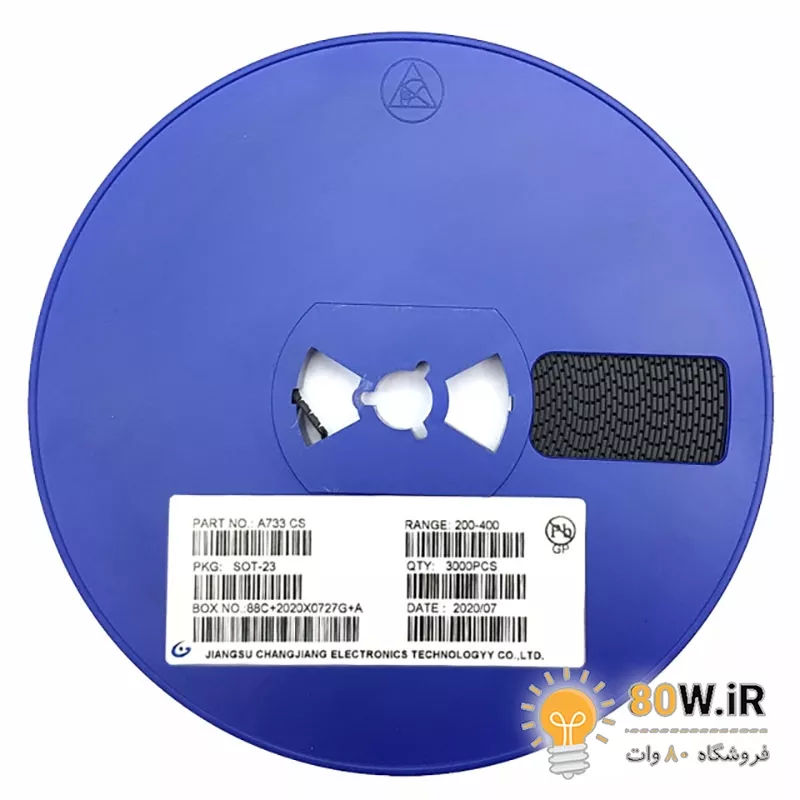

ترانزیستور A733 SMD کد CS پکیج SOT-23 (بسته 20 عددی)

ترانزیستور BJT نوع NPN مدل A733 پکیج SOT-23 SMD

Specification

Type Designator: A733
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.15 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Collector Capacitance (Cc): 4.5 pF
Forward Current Transfer Ratio (hFE), MIN: 120
