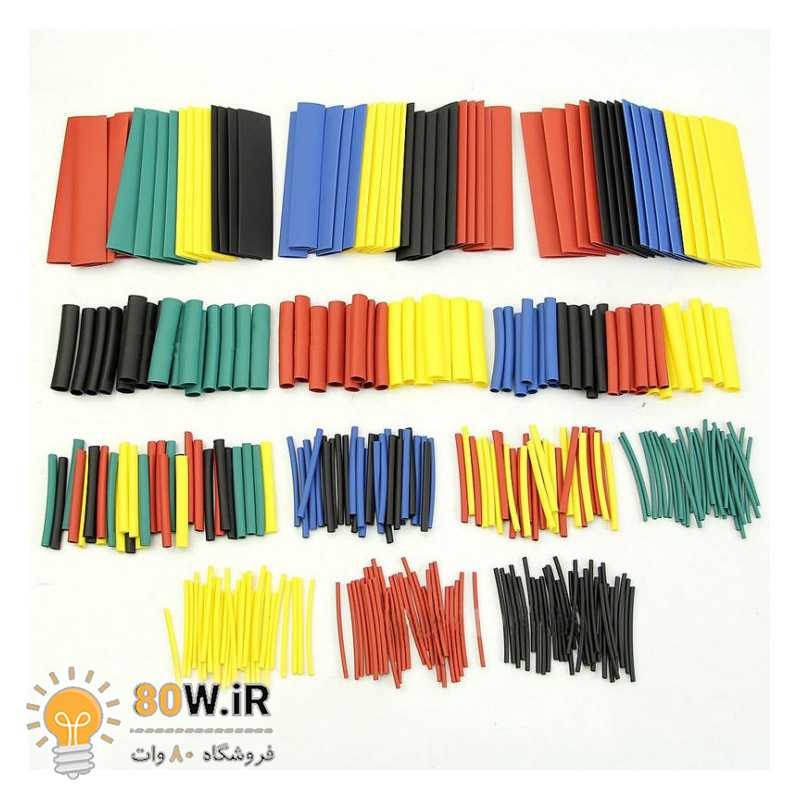

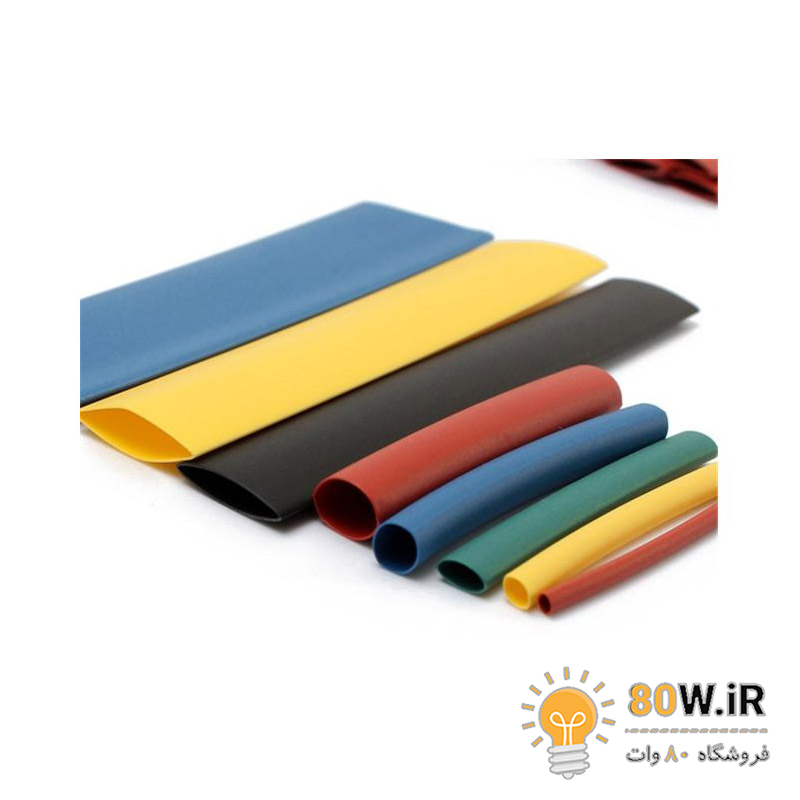

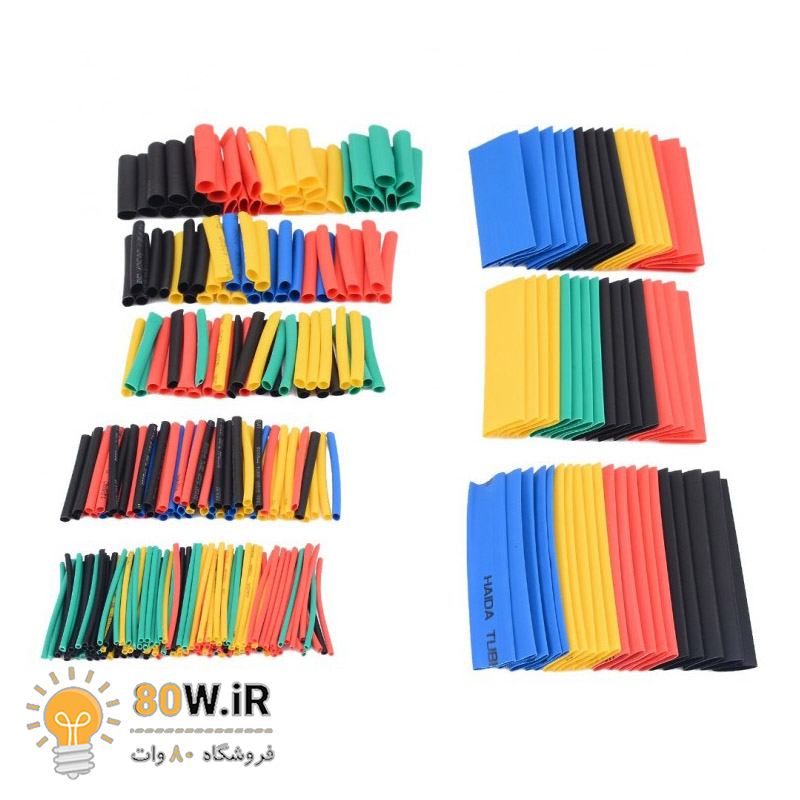

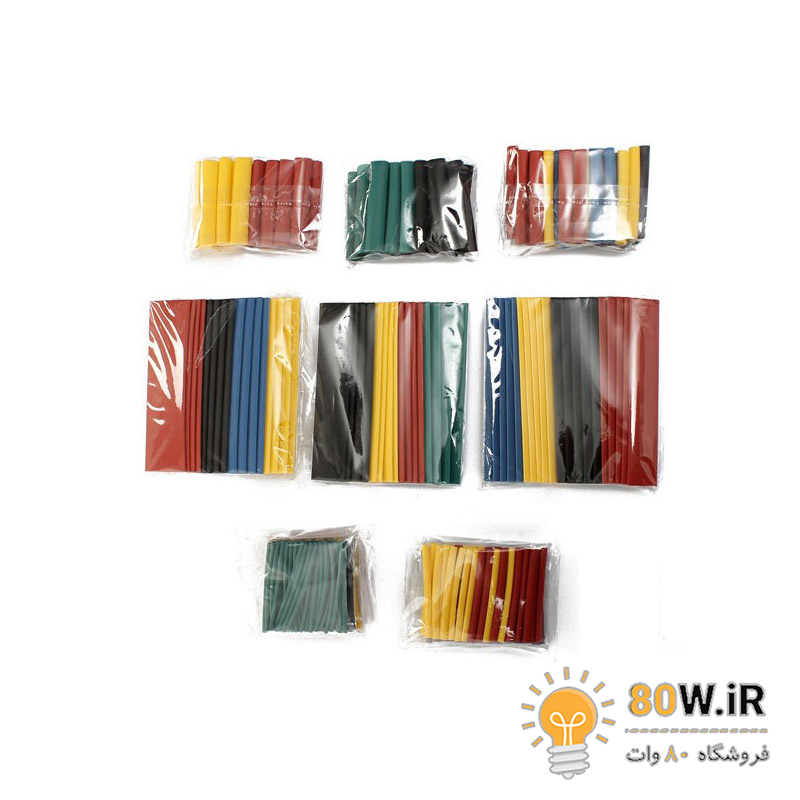

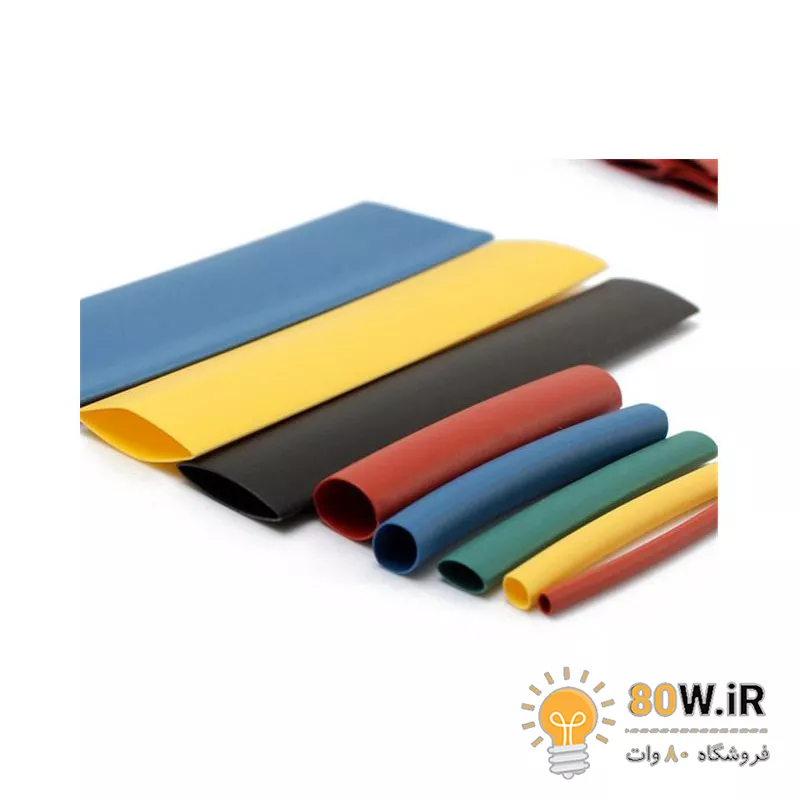

پک وارنیش حرارتی رنگی 328 عددی

در 5 رنگ و 8 سایز دارای رنگ های قرمز، آبی، مشکی،زرد و سبز در سایزهای 1mm , 2mm , 3mm , 4mm , 6mm , 8mm , 10mm ,14mm

The 328PCS specifications are as follows:

Quantity: 328 pcs
Color: Black, Orange, Yellow, Blue, Green
The shrinkage of this product is 2:1 (shrink to 1/2)
, and both UL and CSA certifications reach 600 volts @ 125 degrees Celsius.
The product is also ROHS compliant.
Material: Polyolefin
minimum shrinkage temperature: ±70°C
Maximum shrinkage temperature: Maximum ±110°C
Operating temperature: -55°C to +125°C
Tensile strength: 10.4 MPa
Insulation strength: 15 kV/mm
Manufacturing specification: ISO9001
Flame Retardant: Flame Retardant
Approval: UL Approved
Supply Format (round or flat): Product supply flat
cutting method: scissors or sharp knife

328 PCS dimensions include:
(quantity x provides inner diameter x single length)
120 × x × 1 × 40mm (yellow, black, orange, green)
60PCX × 2 × 40mm (yellow, black, orange, blue)
32 × x × 3 ×40mm (yellow, black, orange, green)
32×x×4×40mm (yellow, black, orange, blue)
32×x×6×40mm (yellow, black, orange, green)
20PCS×Φ8×80mm ( Yellow, black, orange, blue)
16PCS × Φ10 × 80mm (yellow, black, orange, green)
16PCS × Φ14 × 80mm (yellow, black, orange, blue)
